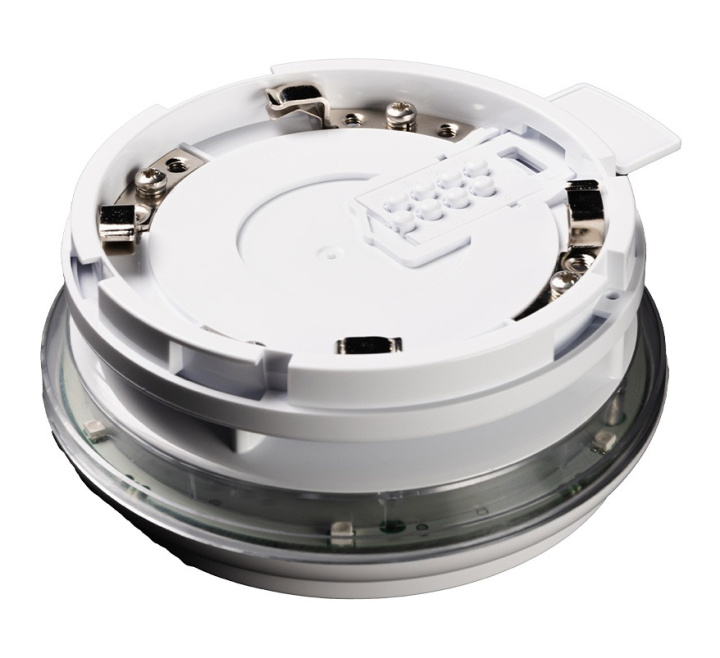

Apollo Discovery XPERT Base Sounder Visual Indicator (White Flash) (58002-350APO)
Product Details for Apollo Discovery XPERT Base Sounder Visual Indicator (White Flash) (58002-350APO)
The Apollo Discovery Base Sounder VID is an addressable, loop-powered Base Sounder offering a range of Tones and Volume levels and connects directly to an XPERT Base for ease of installation.
The Discovery Base Sounder Visual Indicator is available in white or red flash versions and can either be used with an Apollo addressable detector or as a stand-alone device with a base cap, Part No. 45681-292 - white, or Part No. 45681-293 - red, Part No. 45681-296 - black (sold separately).
The Discovery Base Sounder Visual Indicator includes features such as group, global and individual control, status reporting and selectable tone and volume settings, all configured through the fire control panel (compatible control panel required).
Key Features of the 58002-350APO |
|---|
|
> Simple installation using an XPERT 8 base
> Adjustable tone and volume (15 tone pairs, 7 volume settings) > Built-in isolator (when used with XPERT 8 Base) > Unique acoustic self test > Set-up and testing of device at point of installation > Independent control of sounder and visual indicator > White flash |
| Brand | Apollo Fire Detectors |
|---|---|
| Manufacturer Part No. | 58002-350APO |
| Product Series | Discovery |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Apollo Discovery, Apollo CoreProtocol |
| Colour | White |
| Warranty | 10 Years |
FAQ’s for Apollo Discovery XPERT Base Sounder Visual Indicator (White Flash) (58002-350APO)
Product Specification for Apollo Discovery XPERT Base Sounder Visual Indicator (White Flash) (58002-350APO)
| Product no.: | 58002-350APO |
| Description: | Apollo Discovery Base Sounder Visual Indicator (White Flash) |
| Dimensions: | 110mm diameter x 46mm deep |
| Supply voltage: | 17V - 35 VDC |
| Digital communication: | Discovery and CoreProtocol (compatible) |
| Quiescent current: | 0.7 mA |
| Power-up surge current: | 0.7 mA |
| Flash rate: | 0.5 Hz (Default), 1 Hz (Optional) |
| Alarm current, sounder & VID on: | 8.65 mA |
| Alarm current at each volume level: | Volume 7: 8.65 mA Volume 6: 6.2 mA Volume 5: 5.5 mA Volume 4: 5.1 mA Volume 3: 4.3 mA Volume 2: 3.9 mA (not EN54-3 approved) Volume 1: 3.3 mA (not EN54-3 approved) |
| Max. sound output @ 90o: | 95 dB(A) |
| Operating temperature: | -20°C to +70°C |
| Humidity: | 0 - 95% RH (no condensation or icing) |
| IP rating: | IP21C rating approved per EN54-3 |
| Manufacturer's declared rating: | IP34 |
| Vibration, impact & shock: | EN54-3, EN54-17:2005 |
| Material: | Housing: White flame-retardant polycarbonate Terminals: Nickel plated stainless steel |
| Weight: | 198g |
