Siemens FDAI93-Ex Cerberus PRO Flush Fitting LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F6-A1)
SKU
S54370-F6-A1
£12.41
£10.34
Siemens FDAI93-Ex Cerberus PRO Flush Fitting LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F6-A1)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDAI93-Ex Cerberus PRO Flush Fitting LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F6-A1)

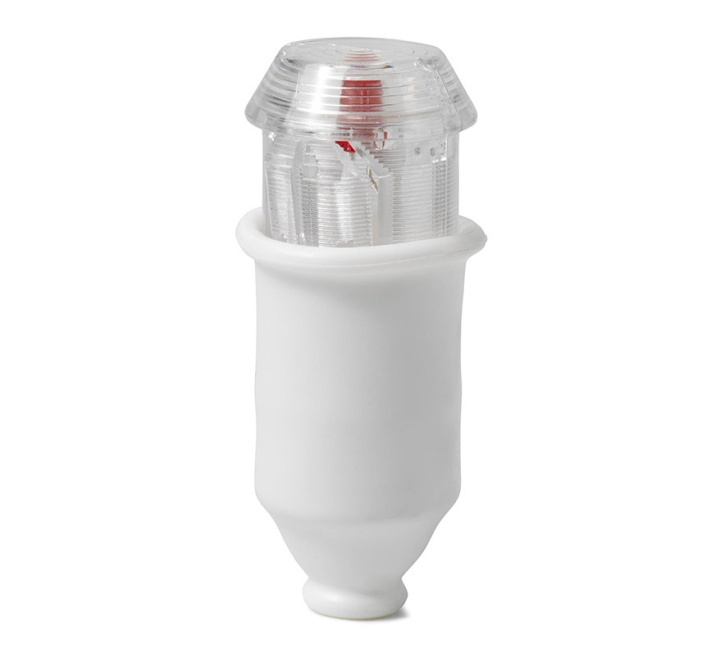

Made of transparent plastic, the Siemens FDAI93-Ex Alarm Indicator is suitable for installation in door frames, switching panels, ceiling voids or special housings.
The 22.5 mm Ø mounting hole is drilled by the system owner. The holder must be fitted with the insulating cap for safety. For installation in humid rooms the DCA1191, DJZ1193 housings as well as a washer are available (must be ordered separately).
Up to 4 alarm indicators can be built into the housing DCA1191
Key Features of the S54370-F6-A1 |
|---|
|
> Simple plug-in, expanding spring socket
> Made of transparent plastic > Suitable for installation in door frames, switching panels, ceiling voids or special housings > 22.5 mm Ø mounting hole to be drilled by the system owner > Holder must be fitted with insulating cap for safety > For installation in humid rooms the DCA1191, DJZ1193 housings as well as a washer are available (must be ordered separately) > Up to 4 alarm indicators can be built into the housing DCA1191 |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDAI93-EX |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDAI93-Ex Cerberus PRO Flush Fitting LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F6-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDAI93-Ex Cerberus PRO Flush Fitting LED Alarm Remote Indicator for Explosion-Hazard Areas (S54370-F6-A1)
| Product: | Siemens FDA193-Ex Alarm Indicator |
| Product code: | S54370-F6-A1 |
| Dimensions: |
Dia:26mm x D:51mm |
| Operating voltage: | DC 1.5 V |
| Operating current: | 20 - 30 mA (continuous) |
| Operating temperature: | -25 to +80 °C |
| Ex-classification: | Ex ib IIC T6 (Ta ≤ 55 °C) 'simple apparatus' acc. to EN 50020 § 5.4: Ex ib IIC T5 (Ta ≤70 °C) |
| IP rating: | IP56; IP65 with DJZ1193 |
| Colour: | Transparent |
| Further accessories: | DJZ1193 Alarm indicator housing incl. washer (IP65) |
