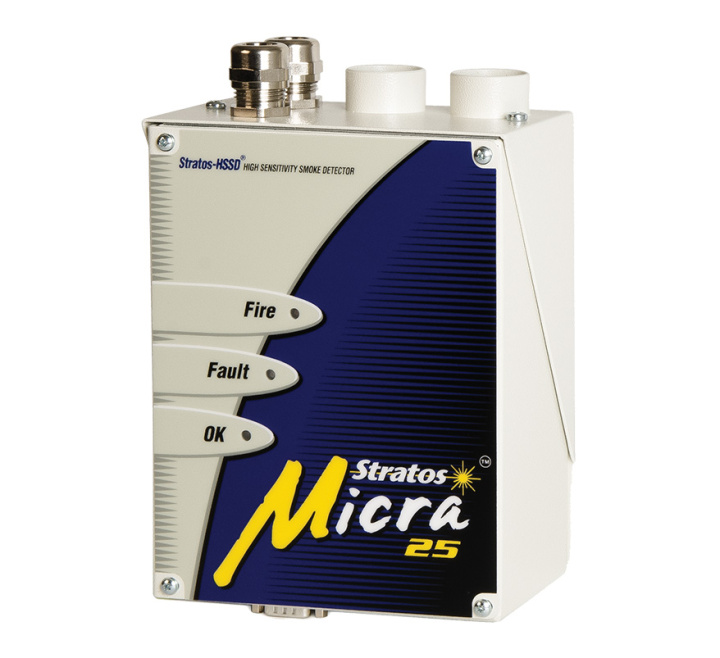

AirSense Stratos Micra 25 High Sensitivity Smoke Detector with I/O Card (9-30760)
Product Details for AirSense Stratos Micra 25 High Sensitivity Smoke Detector with I/O Card (9-30760)
The AirSense Stratos Micra 25 is designed to provide very high sensitivity smoke detection in a small package.
ClassiFire Perceptive Artificial Intelligence ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup. This means that the product will configure itself to provide high sensitivity in a computer room or reduced sensitivity in a smoky area.
The detector is designed to fit into a Docking Station. All sampling pipes and cables are connected to the Docking Station as a first-fix operation, leaving the detector to be fitted during the final commissioning phase, if required. This ensures that detectors are less likely to be damaged during the installation.
Upgradable volt-free Fire and Fault relay outputs are available for remote monitoring by local fire detection or BMS systems.
The AirSense 9-30760 is supplied with the 9-30436 input/output expansion card already fitted.
Typical Applications:
- Data storage units
- Prison cells
- Plant rooms
- Air conditioning units
- Equipment racks
- Computer rooms
- Air duct protection
- Heritage property protection
- Critical equipment
- Anti-smoking enforcement
- Motor rooms
Key Features of the 9-30760 |
|---|
|
> Ultra small low cost aspirating smoke detector for easy and discreet installation
> High sensitivity provided by laser based forward light scatter for reliable early warning > Single sampling pipe up to 50m in length (still air) > Unique ClassiFire® Perceptive Artificial Intelligence system that dynamically adjusts the detector’s operating parameters, allowing for day to day changes in the protected environment and dust separation system contamination > Unwanted alarms from dust are avoided using patented Dual Technology LDD 3D3 Laser Dust Discrimination and elimination system > RS485 communications built in as standard for networking and remote communications > CPR, LPCB, VdS, NF & CSIRO approved |
| Brand | AirSense |
|---|---|
| Manufacturer Part No. | 9-30760 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Warranty | 2 Years |
FAQ’s for AirSense Stratos Micra 25 High Sensitivity Smoke Detector with I/O Card (9-30760)
Product Specification for AirSense Stratos Micra 25 High Sensitivity Smoke Detector with I/O Card (9-30760)
| Code: | 9-30760 |
| Description: | AirSense Stratos Micra 25 High Sensitivity Smoke Detector with I/O card |
| Dimensions: | W:145mm x H:220mm x D:85mm |
| Operating voltage: | 21.6 to 26.4 VDC |
| Current consumption: | 250 mA |
| Detection: | Laser light scattering mass detection and particle evaluation Particle sensitivity range: 0.003μ to 10μ Measurement range (%Obs/m): 0.0015% to 25% Alarm levels: 4 (Aux, Pre-alarm, Alarm and Alarm 2) |
| Output: | Standard: 2 - Alarm (n/o) and Fault (n/c) Rating: 500mA @ 30V Expansion: input/output card already fitted |
| Operating temperature: | -10 to +60°C (EN54-20) |
| Relative humidity: | 0 to 90% non-condensing |
| IP rating: | IP40, indoor |
| Certification: | EN54-20 |
| Environment: | Indoor |
| Colour: | Cream |
| Material (body): | Sheet steel enclosure |
| Mounting type: | Wall |
| Sampling pipework: | Inlets: 1 Length: 50m combined (25m in moving air) Diameter: 27mm OD Sampling holes: up to 10 Exhaust: 1 (optional) |
| User interface: | Indicators: LED |
| Networking: | SenseNET (RS-485): On board |
| Cable entries: | 2 x M20 |
| Regulatory: | EN54-20 |
| Weight: | 1.7 kg |
