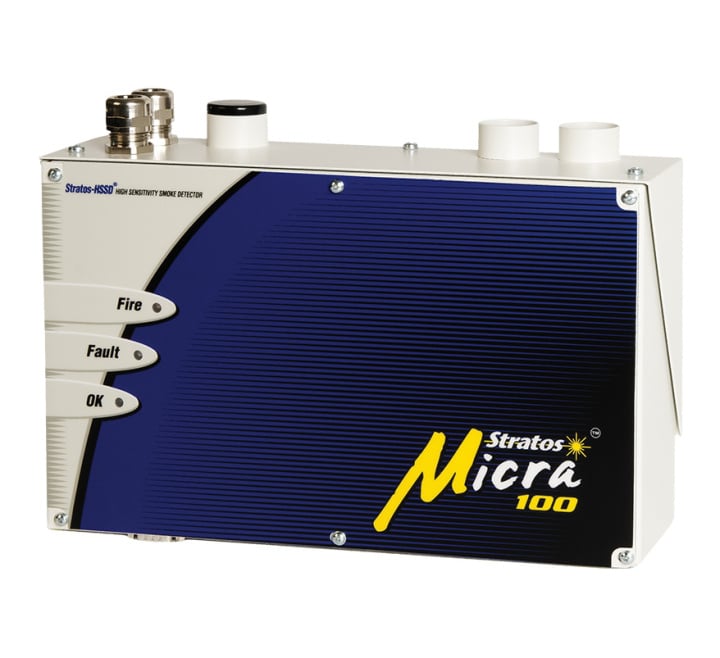

AirSense Stratos Micra 100 High Sensitivity Smoke Detector (9-30672)
Product Details for AirSense Stratos Micra 100 High Sensitivity Smoke Detector (9-30672)
The AirSense Stratos Micra 100 is designed to provide very high sensitivity smoke detection in a small package.
ClassiFire Perceptive Artificial Intelligence ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup. This means the product will configure itself to provide high sensitivity in a computer room or reduced sensitivity in a smoky area.
The detector is designed to fit into a Docking Station. All sampling pipes and cables are connected to the Docking Station as a first fix operation leaving the detector to be fitted during the final commissioning phase if required. This ensures that detectors are less likely to be damaged during the installation.
Upgradable volt-free Fire and Fault relay outputs are available for remote monitoring by local fire detection or BMS systems.
Typical Applications:
- Data storage units
- Prison cells
- Plant rooms
- Air conditioning units
- Equipment racks
- Computer rooms
- Air duct protection
- Heritage property protection
- Critical equipment
- Anti-smoking enforcement
- Motor rooms
Key Features of the 9-30672 |
|---|
|
> Small low cost aspirating smoke detector for easy and discreet installation
> High sensitivity provided by laser based forward light scatter for reliable early warning > Single sampling pipe up to 100m in length (still air) > Unique ClassiFire® Perceptive Artificial Intelligence system that dynamically adjusts the detector’s operating parameters, allowing for day to day changes in the protected environment and dust separation system contamination > Unwanted alarms from dust are avoided using patented Dual Technology LDD 3D3 Laser Dust Discrimination and elimination system > RS485 communications built in as standard for networking and remote communications > CPR, LPCB, VdS, NF & CSIRO approved |
| Brand | AirSense |
|---|---|
| Manufacturer Part No. | 9-30672 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Warranty | 2 Years |
FAQ’s for AirSense Stratos Micra 100 High Sensitivity Smoke Detector (9-30672)
Product Specification for AirSense Stratos Micra 100 High Sensitivity Smoke Detector (9-30672)
| Code: | 9-30672 |
| Description: | AirSense Stratos Micra 100 High Sensitivity Smoke Detector |
| Dimensions: | W:300mm x H:220mm x D:85mm |
| Status indication: | LED |
| Operating voltage: | 21.6 to 26.4 VDC |
| User interface: |
Indicators: LED |
| Networking: | SenseNET (RS-485) On-board |

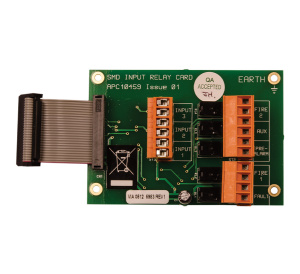

| Output: | Standard: 2 - Alarm (n/o) and Fault (n/c) Rating: 500mA @ 30V Expansion: Optional input and relay card |
| Current consumption: |
400 mA |
| Detection principle: | Laser light scattering mass detection and particle evaluation |
| Particle sensitivity range: | 0.003μ to 10μ |
| Measurement range (%Obs/m): | 0.0015 to 25 % |
| Alarm levels: | 4 (Aux, Pre-alarm, Alarm and Alarm 2) |
| Sampling pipework: | Inlets: 2 Length: 100m maximum run (50m in moving air) Diameter: 27mm OD Sampling holes: up to 20 holes Exhaust: 1 (optional) |
| Operating temperature: | -10 to +60°C (EN54-20) |
| Relative humidity: | 0 to 90% non-condensing |
| IP Rating: | IP40, Indoor |
| Material (body): | Sheet steel enclosure |
| Cable entries: | 2 x M20 |
| Mounting type: | Wall |
| Colour: | Cream |
| Certification: | EN54-20 |
| Weight: | 3.8kg |
