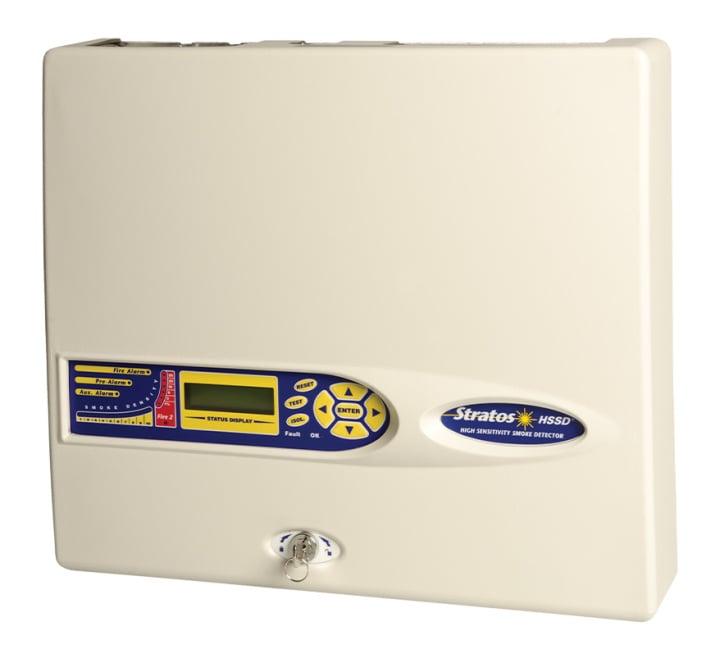

AirSense Stratos HSSD2 High Sensitivity Smoke Detector (9-30621)
Product Details for AirSense Stratos HSSD2 High Sensitivity Smoke Detector (9-30621)
The AirSense Stratos HSSD2 is designed to provide very high-sensitivity smoke detection, ensuring the very earliest warning of incipient fire with minimum rate of nuisance alarms.
ClassiFire Perceptive Artificial Intelligence ensures that the detector operates at optimum sensitivity for the protected environment, without the need for complex setup. This means the product will configure itself to provide high sensitivity in a computer room or reduced sensitivity in a smoky area.
Upgradable volt-free Fire and Fault relay outputs are available for remote monitoring by local fire detection or BMS systems.
Typical Applications:
• Data storage units
• Prison cells
• Plant rooms
• Air conditioning units
• Equipment racks
• Computer rooms
• Air duct protection
• Heritage property protection
• Critical equipment
• Anti-smoking enforcement
• Motor rooms
Key Features of the 9-30621 |
|---|
|
> High sensitivity provided by laser-based forward light scatter for reliable early warning
> Combined sampling pipe up to 200m in length (still air) > Unique ClassiFire® Perceptive Artificial Intelligence system that adjusts the detector’s operating parameters, allowing for day-to-day changes in the protected environment and dust separation system contamination > Unwanted alarms from dust are avoided using patented Dual Technology LDD 3D3 Laser Dust Discrimination and Elimination system > RS485 communications built in as standard for networking and remote communications > Large area aspirating smoke detector, up to 2000m² coverage > CPR, LPCB, VdS, NF, CSIRO, UL & FM approved |
| Brand | AirSense |
|---|---|
| Manufacturer Part No. | 9-30621 |
| Primary Power Source | Mains Powered (230V) |
| Sensor Type | Optical |
| Detectable Medium | Smoke |
| Warranty | 2 Years |
FAQ’s for AirSense Stratos HSSD2 High Sensitivity Smoke Detector (9-30621)
Product Specification for AirSense Stratos HSSD2 High Sensitivity Smoke Detector (9-30621)
| Code: | 9-30621 |
| Description: | AirSense Stratos HSSD2 High Sensitivity Smoke Detector |
| Dimensions: | W:427mm x H:372mm x D:95mm |
| Status indication: | LED and LCD |
| User interface: | Keypad |
| Operating voltage: | 21.6 to 26.4 VDC |
| Input: | Standard: 3-programmable |
| Output: | Standard: 5 - Pre-Alarm, Alarm, Alarm2, Aux Alarm (n/o) and Fault (n/c) Rating: 500mA @ 30V |
| Current consumption: |
450 mA at fan speed 8 |
| Detection principle: | Laser light scattering mass detection and particle evaluation |
| Particle sensitivity range: | 0.003μ to 10μ |
| Measurement range (%Obs/m): | 0.0015% to 25% |
| Alarm levels: | 4 (Aux, Pre-alarm, Alarm and Alarm 2) |
| Sampling pipework: | Inlets: 4 Length: 100m maximum single run (50m in moving air) 200m Combined maximum Diameter: 27mm OD Holes: up to 100 holes Exhaust: 1 (optional) |
| Operating temperature: | -10 to +60°C (EN54-20) |
| Relative humidity: | 0 to 90% non-condensing |
| IP Rating: | IP40, Indoor |
| Material (body): | Polycarbonate, Sheet steel enclosure with plastic front cover |
| Cable entries: | 6 x M20 |
| Mounting type: | Wall |
| Colour: | Cream |
| Certification: | EN54-20, FM, UL |
| Weight: | 5.2kg |
