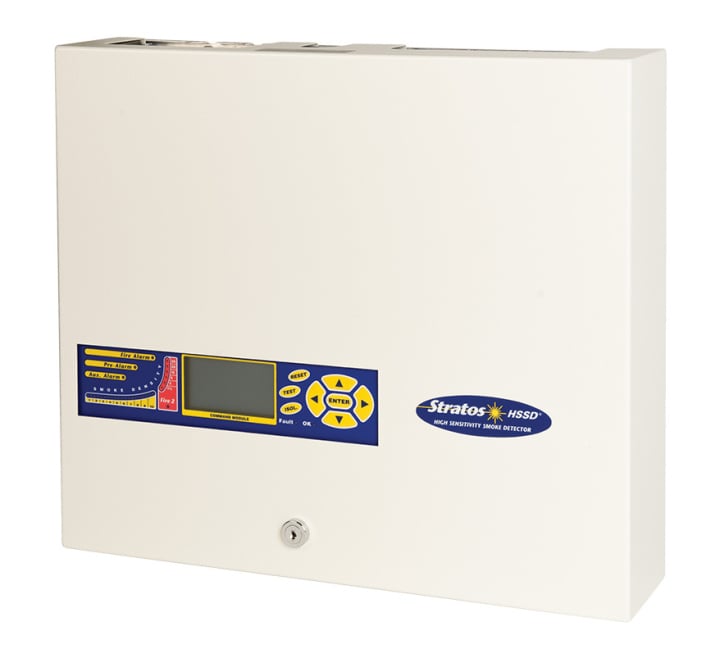

AirSense Stratos Standalone Command Module (Steel Enclosure) (9-30709)
SKU
9-30709
£1,998.40
£1,665.33
AirSense Stratos Standalone Command Module (Steel Enclosure) (9-30709)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for AirSense Stratos Standalone Command Module (Steel Enclosure) (9-30709)
The AirSense Stratos Command Module provides a single location display, control and interfacing option for systems of up to 127 detectors. The Command Module allows global programming of all detector functions simultaneously.
The integral bar graph automatically displays the status of the detector with the highest alarm level to identify potential problem areas.
The PIN protected programmer enables global entry of all detector settings to significantly reduce commissioning time.
Typical Applications:
• Data storage units
• Prison cells
• Plant rooms
• Air conditioning units
• Equipment racks
• Computer rooms
• Air duct protection
• Heritage property protection
• Critical equipment
• Anti-smoking enforcement
• Motor rooms
Key Features of the 9-30709 |
|---|
|
> RS485 communications built in as standard for networking and remote communications
> Network control of 127 detectors > Built-in Short Isolators for optimum reliability |
| Brand | AirSense |
|---|---|
| Manufacturer Part No. | 9-30709 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 2 Years |
Write Your Own Review
FAQ’s for AirSense Stratos Standalone Command Module (Steel Enclosure) (9-30709)
No questions yet. Be the first to ask the question!
Product Specification for AirSense Stratos Standalone Command Module (Steel Enclosure) (9-30709)
| Code: | 9-30709 |
| Description: | AirSense Stratos Stand alone Command Module |
| Dimensions: | W:427mm x H:372mm x D:95mm |
| Operating voltage: |
21.6 to 26.4 VDC |
| Current consumption: | 250 mA |
| Operating temperature: | -10 to +60°C (EN54-20) |
| Relative humidity: | 0 to 90% non-condensing |
| IP rating: | IP40, indoor |
| Voltage: | 21.6 to 26.4 Vdc |
| Current: | 250 mA |
| Outputs: | Standard: 5 - Pre-Alarm, Alarm, Alarm2, Aux Alarm (n/o) and Fault (n/c) Rating: 500mA @ 30V |
| User interface: | Indicators: LED and LCD Navigation: Keypad |
| Material: |
Sheet steel |
| Colour: | Cream |
| Cable entries: | 6 x M20 |
| Mounting: | Wall |
| Weight: | 5.2kg |
