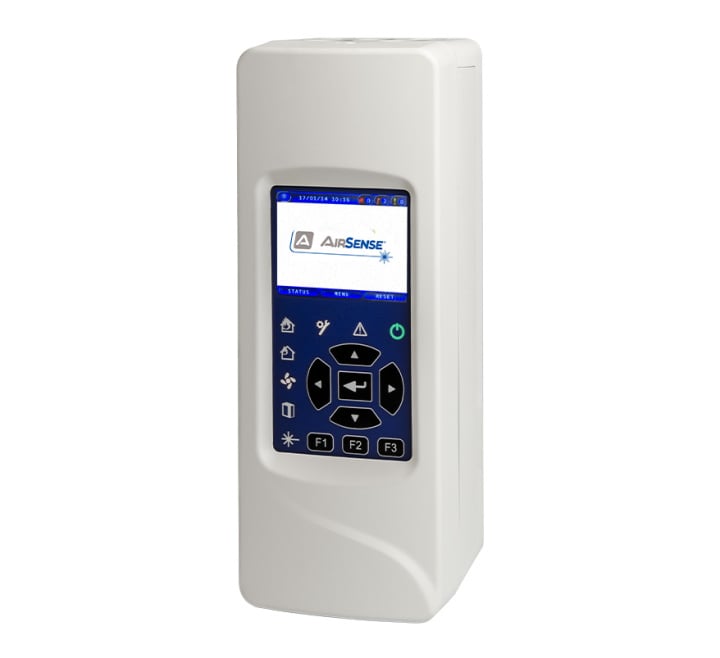

AirSense Modulaser Standard Display Module
The AirSense ModuLaser standard display module (9-30781) communicates via an RS-485 interconnection. Supports up to 8 detector modules.
Configuration of the Standard Display Module can be done via the user interface, via a computer using Remote software or via SenseNET using a Command Display Module. The TFT colour display supports operations such as changing configuration options via a menu driven structure as well as advanced features such as viewing the chart recording in graphical format. The Standard Display Module has 2 USB ports, 1 master and 1 slave. The master is used to connect a pen drive/memory stick which, in turn, can be used to store the configuration, event logs, chart recordings or for firmware upgrade purposes. The USB slave is used to connect to a computer.
Advanced features make it virtually impervious to dust and dirt, making ModuLaser ideal for use in hostile environments. Forward scattering optical detection adds early warning capability without the risk of nuisance alarms, while environmental compensation technology adds a high degree of reliability.
| Key Features |
|---|
| > Modular Design: Separate centrally-controllable detector modules allow efficient piping and discrete zones with no overlap > Zoned aspirating smoke detection: Individual detector modules provide detection for individual areas or zones, specific zone alarm information can be transmitted to the main fire alarm panel via a common APIC address card in the display module or through dedicated alarm relays within each detector module > Simplified installation: Ingenious docking station design allows detectors to be easily connected together as a group. Sensitive electronics are easily removed to ensure they will not be damaged during first fix installation. Aspirating pipework and cable entries can easily be made into either the top or the bottom of the unit > Intuitive user interface: Bright easy-to-see colour TFT display and universal navigation and control buttons take the guesswork out of programming and diagnostics. > Easy pipe connection: The quick fit pipe adaptor system locks down securely, yet leaves plenty of room for easy pipe connection and removal > Quick location of smoke: Each detector module is self-contained, which means no delays in determining in which zone (sampling pipe) smoke is present |
| Manufacturer | AirSense |
|---|---|
| MPN | 9-30781 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| Code: | 9-30781 |
| Description: | AirSense ModuLaser, Standard display module |
| Dimensions: | W:110.5mm x H:133.5mm x D:300mm |
| Status indication: | LEDs |
| User interface: | TFT and navigation buttons on Normal and Command Display Modules |
| Alarm levels: | 4 (Aux, Pre-alarm, Alarm and Alarm 2) |
| Event log: | 20,000 events per module |
| RS485 support: | Yes (SenseNET and SenseNET+) |
| Connectivity: | USB (x2), IP and APIC on Display Module |
| Operating voltage: | 18 to 30 VDC |
| Current consumption: | Display Module (at 24 VDC): 204 mA - Minimum Display Module 232 mA - Standard Display Module 232 mA - Command Display Module Detector Module (at 24 VDC): 260 mA - fan speed 1 380 mA - fan speed 6 (default speed) 940 mA - fan speed 16 |
| Detection: | Principle: Laser light scattering mass detection and particle evaluation Particle sensitivity range: 0.003 to 10 microns |
| Sampling pipe: | Length: Up to 250 m (820 ft.) combined per detector module Quantity sampling holes: Up to 20 - Class A per detector module Up to 40 - Class B per detector module Up to 50 - Class C per detector module Inlet size: 27 or 25 mm (1.06 or 0.98 in) outer diameter Inlet location: Top or bottom Exhaust size: 27 or 25 mm (1.06 or 0.98 in) outer diameter Exhaust location: Top or bottom Inlet quantity: 1 per detector module |
| Input: | Quantity: 2 per module Type / rating: Supervised Termination: 15 KΩ 5% 1/4 W Programmable: Yes |
| Output: | Quantity: 3 per module Type / rating: Voltage free (contact rating 2 A at 30 VDC / NO/NC/C) Programmable: Yes |
| Operating temperature: | Equipment: -20 to +60 °C (-4 to +140 °F) Sampled air: -20 to +60 °C (-4 to +140 °F) |
| Relative humidity: | 0 to 95% non-condensing |
| IP Rating: | IP40, Indoor |
| Mounting type: | Surface |
| Cable entries: | 2 at the bottom, 2 at the rear, 2 at the top on Detector Module, and 3 at the top on the Display Module |
| Cable entry size: | 20mm (0.5 in) - top and bottom |
| Detector module orientation: | Vertical (0 deg or 180 deg) |
| Chart recorder: | Sampling period: Adjustable between 1s and 60s Capacity: 1 month @ 1s / Up to 5 years @ 60s Values recorded: Detector value, 4 alarm level values, flow value and temperature (all simultaneously) |
| Compatible products: | 9-30780: AirSense ModuLaser, Minimum display module 9-30782: AirSense ModuLaser, Command display module 9-30783: AirSense ModuLaser, Detector module |
| Colour: | Cream |
| Regulatory: | REACH, RoHS compliant BOSEC, CPR, CSIRO, EN54-20, LPCB, VdS certified |
| Weight: | Display Module: 1.18 Kg (2.6 lb.) Detector Module: 1.57 Kg (3.46 lb.) |
