AirSense ModuLaser Minimum Display Module (9-30780)
Product Details for AirSense ModuLaser Minimum Display Module (9-30780)

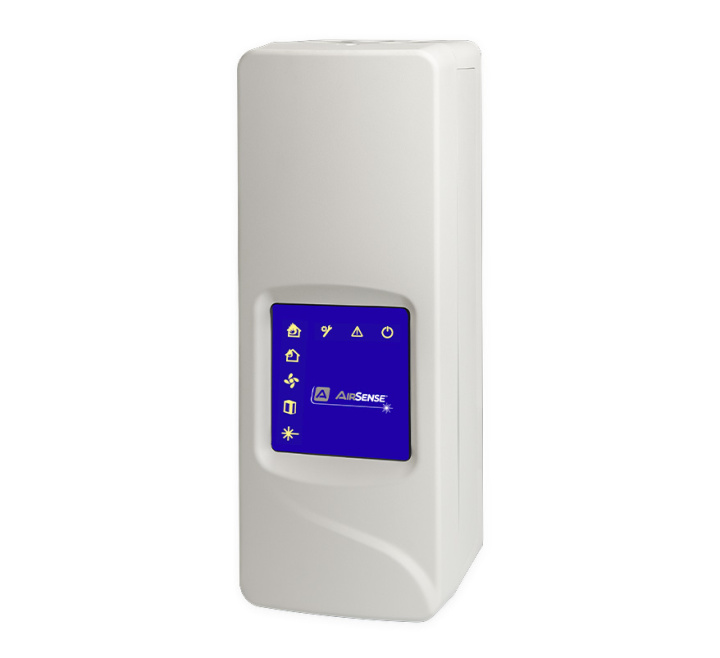

The AirSense 9-30780 ModuLaser Minimum Display Module offers a cost-effective alternative to the Standard Display Module. While the Standard Display Module features a user interface which consists of a TFT colour display, navigation buttons and status LEDs, the Minimum Display Module only features status LEDs.
Depending on the requirements of the installation, only having status LEDs might be sufficient to locally indicate faults or alarms while still reporting faults and alarms via the relay outputs or APIC. Due to the absence of a screen and navigation buttons, the Minimum Display Module(and associated detectors modules) must be configured via a computer using Remote software or via SenseNET using a Command Display Module.
AirSense ModuLaser is a scalable aspirating smoke detection solution that makes installation easier, maintenance quicker, and takes applications further than traditional air sampling detectors. Two basic module types comprise the ModuLaser solution: a display module, and a detector module. Each detector module can accommodate up to 250 meters combined sampling pipe. Display modules and detector modules communicate by RS-485 interconnections.
Display modules are available in three configurations: Standard with TFT color display, status LED's and navigation buttons, Minimum with only status LED's, and Command which is similar to the Standard but with the added functionality to control various modules over SenseNET. The Minimum and Standard Display Modules can each support up to 8 detector modules, while the Command Display Module can support up to 127 modules across the SenseNET network.
Thanks to advanced features that make it virtually impervious to dust and dirt, ModuLaser is ideal for use in hostile environments that would disable other kinds of smoke detectors. Forward scattering optical detection adds early warning capability without the risk of nuisance alarms normally associated with high sensitivity smoke detection, while exclusive environmental compensation technology adds a high degree of reliability to an already solid detection solution.
Key Features of the 9-30780 |
|---|
|
> Modular Design : Separate centrally-controllable detector modules allow efficient piping and discrete zones with no overlap
> Zoned aspirating smoke detection : Individual detector modules provide detection for individual areas or zones, specific zone alarm information can be transmitted to the main fire alarm panel via a common APIC address card in the display module or through dedicated alarm relays within each detector module > Simplified installation : Ingenious docking station design allows detectors to be easily connected together as a group. Sensitive electronics are easily removed to ensure they will not be damaged during first fix installation. Aspirating pipework and cable entries can easily be made into either the top or the bottom of the unit. > Intuitive user interface : Bright easy-to-see colour TFT display and universal navigation and control buttons take the guesswork out of programming and diagnostics > Easy pipe connection : The quick fit pipe adaptor system locks down securely, yet leaves plenty of room for easy pipe connection and removal > Quick location of smoke : Each detector module is self-contained, which means no delays in determining in which zone (sampling pipe) smoke is present |
| Brand | AirSense |
|---|---|
| Manufacturer Part No. | 9-30780 |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 2 Years |
FAQ’s for AirSense ModuLaser Minimum Display Module (9-30780)
Product Specification for AirSense ModuLaser Minimum Display Module (9-30780)
| Code: | 9-30780 |
| Description: | AirSense ModuLaser, Minimum Display Module |
| Dimensions: | W:110.5mm x H:133.5mm x D:300mm |
| Status indication: | LEDs |
| User interface: | TFT and navigation buttons on Normal and Command Display Modules |
| Alarm levels: | 4 (Aux, Pre-alarm, Alarm and Alarm 2) |
| Event log: | 20,000 events per module |
| RS485 support: | Yes (SenseNET and SenseNET+) |
| Connectivity: | USB (x2), IP and APIC on Display Module |
| Operating voltage: | 18 to 30 VDC |
| Current consumption: | Display Module (at 24 VDC): 204 mA - Minimum Display Module 232 mA - Standard Display Module 232 mA - Command Display Module Detector Module (at 24 VDC): 260 mA - fan speed 1 380 mA - fan speed 6 (default speed) 940 mA - fan speed 16 |
| Detection: | Principle: Laser light scattering mass detection and particle evaluation Particle sensitivity range: 0.003 to 10 microns |
| Sampling pipe: | Length: Up to 250 m (820 ft.) combined per detector module Quantity sampling holes: Up to 20 - Class A per detector module Up to 40 - Class B per detector module Up to 50 - Class C per detector module Inlet size: 27 or 25 mm (1.06 or 0.98 in) outer diameter Inlet location: Top or bottom Exhaust size: 27 or 25 mm (1.06 or 0.98 in) outer diameter Exhaust location: Top or bottom Inlet quantity: 1 per detector module |
| Input: | Quantity: 2 per module Type / rating: Supervised Termination: 15 KΩ 5% 1/4 W Programmable: Yes |
| Output: | Quantity: 3 per module Type / rating: Voltage free (contact rating 2 A at 30 VDC / NO/NC/C) Programmable: Yes |
| Operating temperature: | Equipment: -20 to +60 °C (-4 to +140 °F) Sampled air: -20 to +60 °C (-4 to +140 °F) |
| Relative humidity: | 0 to 95% non-condensing |
| IP Rating: | IP40, Indoor |
| Mounting type: | Surface |
| Cable entries: | 2 at the bottom, 2 at the rear, 2 at the top on Detector Module, and 3 at the top on the Display Module |
| Cable entry size: | 20mm (0.5 in) - top and bottom |
| Detector module orientation: | Vertical (0 deg or 180 deg) |
| Chart recorder: | Sampling period: Adjustable between 1s and 60 s Capacity: 1 month @ 1s / Up to 5 years @ 60 s Values recorded: Detector value, 4 alarm level values, flow value and temperature (all simultaneously) |
| Compatible products: | 9-30781: AirSense ModuLaser, Standard display module 9-30782: AirSense ModuLaser, Command display module 9-30783: AirSense ModuLaser, Detector module |
| Colour: | Cream |
| Regulatory: | REACH, RoHS compliant BOSEC, CPR, CSIRO, EN54-20, LPCB, VdS certified |
| Weight: | Display Module: 1.18 Kg (2.6 lb.) Detector Module: 1.57 Kg (3.46 lb.) |
