Discontinued Product

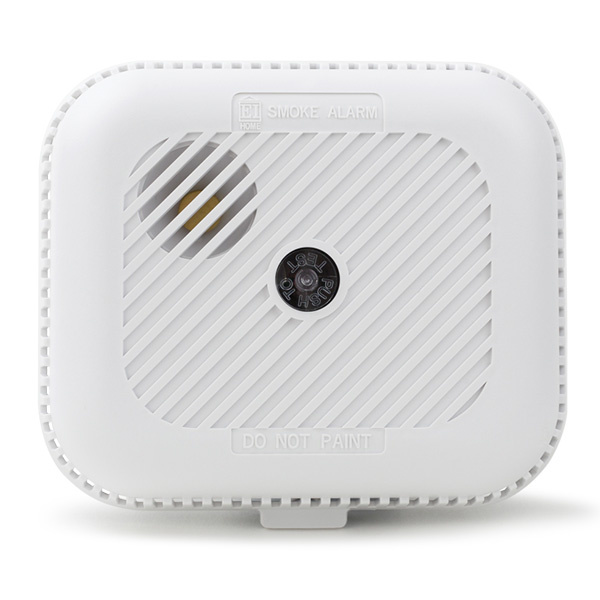

Aico Ei105R Optical Smoke Alarm with Relay
Discontinued
Alternative Products
Product Details for Aico Ei105R Optical Smoke Alarm with Relay
The Aico Ei105R is a 12V DC powered optical smoke alarm, ideal for detecting visible smouldering fires.
Supplied with screw fixings, installation of this alarm is quick and simple, and it is suitable for use in hallways, landings and living or dining rooms. It has a test button for checking that the alarm is in working order, and a pair of built-in volt free relay contacts.
It is CE marked and kitemarked to BS EN 14604:2005, and has a manufacturer's warranty of 5 years.
Wired Interconnection
The Ei105R may be connected via hardwiring with up to 12 other Aico 100R Series alarms. This will allow all linked units to sound when one of them is activated, for optimum coverage and safety.
Key Features of the Ei105R |
|---|
|
> This product has now been discontinued and superseded by the Ei186. Please Click Here to see the upgraded version (Ei186). - Optical smoke alarm - 12V DC powered - Test function - Hard wired interconnection - Kitemarked to BS EN 14604:2005 & CE marked |
| Brand | Aico |
|---|---|
| Manufacturer Part No. | Ei105R |
FAQ’s for Aico Ei105R Optical Smoke Alarm with Relay
Product Specification for Aico Ei105R Optical Smoke Alarm with Relay
| Manufacturer: | Aico |
| Product Code: | Ei105R |
| Dimensions: | H:140mm W:120mm D:45mm |
| Product Weight: | 181g |
| Sound Output: | 85dB alarm at 3 metres |
| Power Supply: | 12V DC |
| Operating Temperature Range: | +4°C to +40°C |
| Storage Temperature Range: | 0°C to +35°C (in a dry area) |
| Operating Humidity Range: | 0-90% RH |
| Approvals: | BS EN 14604:2005 CE Marked |
| Manufacturer's Warranty Period: | 5 years |
