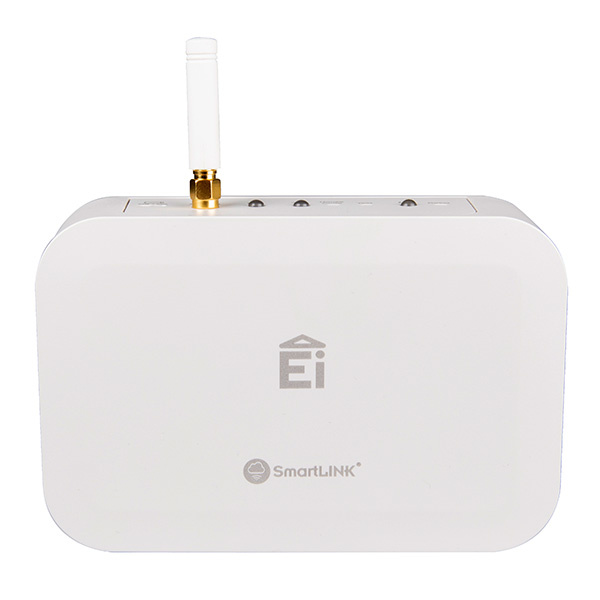

Aico Ei1000G SmartLINK Gateway
Product Details for Aico Ei1000G SmartLINK Gateway
The SmartLINK Gateway is designed for use with the Aico RF devices. It provides a mechanism to transfer information from the RF network to a portal over the GSM network.
It is mains powered with a rechargeable backup battery that can provide up to 72hrs of power supply in case of mains failure.
Connected devices’ events are processed by the Gateway asthey occur and cover events* such as:
- Fire Alarm
- CO level detected (High, Medium, Low)
- Button Test
- Mains Absent Fault
- Head OK
- Head Removed
- End of life
* Reportable events are model dependant
To ensure the safety of the data, it is encrypted in both directions during transmission using AES128 encryption.
In addition, for ease of installation, the SmartLINK App (available on Android & iOS) provides a step by step guide for the installation of the Gateway and the Aico RF devices.
All data sent is accessible from a web portal where alerts can be set up to be delivered by email or SMS. Reports can also be run from the web portal to facilitate the management of the Alarms fitted.
The data on the portal is securely stored and is only available to the associated client.
Watch The Video
Key Features of the Ei1000G |
|---|
|
> Enables remote management of RF alarms
> Compatible with all Aico SmartLINK & RadioLINK+ alarms > 230v mains powered with a rechargeable back-up battery > Receives RF specific data from RF devices > Transmits data over GSM network > Not GSM provider dependent > Bidirectional data encryption > Unique house coding feature > Easy setup and configuration > 5 year manufacturer warranty |
| Brand | Aico |
|---|---|
| Manufacturer Part No. | Ei1000G |
FAQ’s for Aico Ei1000G SmartLINK Gateway
Product Specification for Aico Ei1000G SmartLINK Gateway
| Supply Voltage: | 230V AC, 50Hz |
| Power Consumption: | 40mA |
| Back-up Power: | Rechargeable battery |
| RF frequency: | 85 dB(A) at 3m |
| RF range: | > 100 metres in free air |
| RF protocol type: | Mesh architecture |
| RF protocol: | SmartLINK |
| RF System size: | Up to 12 RF devices |
| Data upload: | via 2G GSM network (Roaming SIM card supplied) |
| Modem: | Quad-Band GPRS modem |
| Data Storage: | Cloud based |
| Indicator LED's: | Green - Power Blue - RF communication Yellow - GSM communication |
| Temperature Range: | -10°C to 40°C |
| Humidity Range: | 15% to 95% RH (non-condensing) |
| Product Dimensions: | Product - 150mm x 145mm x 55mm |
| Product Weight: | 550g |
| Warranty: | 5 years |
| Approvals: | Compliant with Radio Equipment Directive 2014/53/EU |
