Advanced QuickZone XL 12 Zone Repeater Panel (QZXL-R12)
SKU
QZXL-R12
£483.34 £402.78

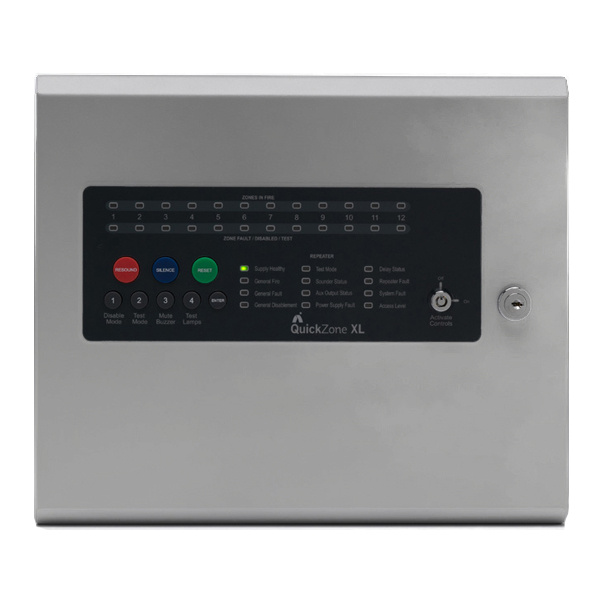

Advanced QuickZone XL 12 Zone Repeater Panel (QZXL-R12)
The Advanced QZXL-R12 conventional repeater fire panel has the same easy to use control and indication as the main control panel but is mounted in a smaller cabinet.
The repeaters are fully functional with ‘Silence’, ‘Resound’ and ‘Reset’ controls, as well as Disable and Test Mode functions. It is also possible to disable the controls for each or all repeater panels to make them passive (indication only). QuickZone XL panels can support up to 8 repeater panels.
Repeater panels are designed to be wired in a fault tolerant (fail safe) loop configuration, to and back to the main panel again. This enables repeater panels to still work if there is a break in the cables.
If replacing an older system where the existing cabling cannot be configured in a loop as above, it is possible to re-programme the panel back with a radial circuit and enable communications monitoring.
The main circuit board has 2 switched negative inputs which can be used to sound or pulse the alarms. These inputs can also be reprogrammed for use as PSU fault inputs.
The internal communications PCB has 6 switch negative programmable outputs.
| Key Features |
|---|
| > 12 Zonal, Fire & Fault indications > 3 Year warranty as standard > Simple colour coded buttons for control > Integral 1 Amp switch mode PSU > Class change and Alert inputs > Programmable Outputs > Test Mode & Disablement functions > Fully functional or passive > Space for up to 2 x 3.2Ah batteries > Key-switch or code entry for activation of controls > Up to 8 repeaters per main panel > Approved to EN54-2 & 4 |
| Manufacturer | Advanced Electronics |
|---|---|
| MPN | QZXL-R12 |
Write Your Own Review
Sort By:
No questions yet. Be the first to ask the question!
| LED Indicators | 13 Red (1xFire, 12xZonal) 1 Green (power) 22 Amber (12xZonal 10 Fault & System) |
| Controls | 3 Colour coded buttons (Resound, Silence & Reset), 1-4 numerical buttons and Enter |
| Key-Switch Input | Level 2 access enable key-switch or code entry |
| Programming | Via on-board buttons |
| Zonal Circuit Configuration | Conventional or Twin Wire (Selectable by DIL switches) |
| Number of Fire Zones | 4 to 12 (dependant on product and expansion) |
| Mains Supply | 230V 50Hz (+10%, -15% tolerance) 1.2A Max |
| Auxiliary Supply | 28V dc 400mA (Continuous load) |
| Programmable Inputs | Class Change & Alert |
| Battery Capacity | 2 x 3.2Ah (Internal 12V SLA) |
| Charger Current | 630mA (27.0Vdc at 20°C Temperature compensated) |
| Networking | Fully functional repeater panel via plug in communications PCB |
| Enclosure/Colour | Lockable, Steel IP30 / RAL7035 |
| Cable Entry (20mm Knockouts) | 13 x Top, & 6 x Rear |
| Size H x W x D (mm) | Back box 250 x 300 x 80, Door 260 x 308 x 23 (Return) |
| Approvals | EN54-2:1997 + A1:2006 & EN54-4: 1997 + A1:2002 + A2:2006 |
