Advanced 1.5A 24V EN54-4 PSE & Battery Charger (Small - 7Ah battery) (MXP-549)
Product Details for Advanced 1.5A 24V EN54-4 PSE & Battery Charger (Small - 7Ah battery) (MXP-549)

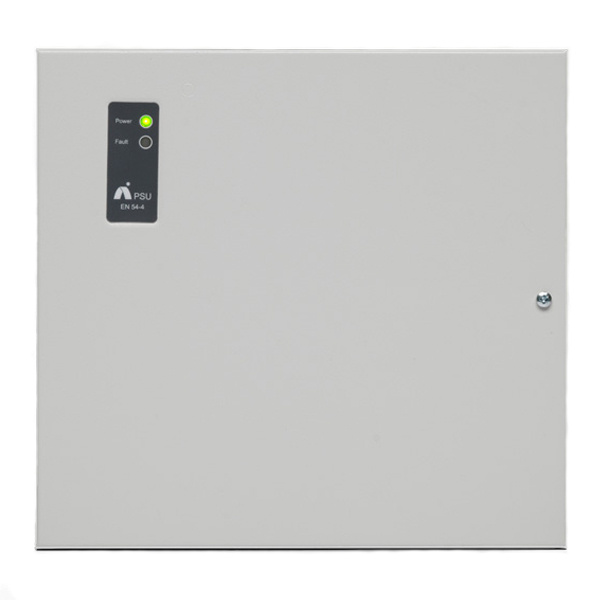

The Advanced MXP-549 is a full 24v 1.5A Power Supply Unit and Battery Charger, compliant with EN54-4 and has capacity for 7Ah batteries.
The Advanced 1.5A power supply units can be used for any fire alarm system which specifies EN54-4 power supply equipment.
Suited for almost any application, the power supply unit/battery charger has been developed using the latest surface mount technology to provide a high efficiency switch mode power supply.
The power supply units are available in fully enclosed construction providing power and fault indication or alternatively in caged versions for mounting into existing enclosures of various sizes to suit different battery capacities.
PSE and charger or PSE only options on the 3.0A and 5.0A versions.
Applications
For any fire alarm system which specifies EN54-4 power supplies (e.g. BS5839 code of practice).
These power supply units can be used in any fire alarm installation requiring a 24Volt supply for operation.
Key Features of the MXP-549 |
|---|
|
> 1.5A Power Supply Unit (24v)
> Battery Charger (7Ah Capacity) > EN54-4 Compliant > A range of power supply equipment with power output options to suit most applications. > High efficiency switched mode power supply > Compact and sleek design |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MXP-549 |
| Product Series | MxPro 5 |
| Primary Power Source | Mains Powered (230V) |
| Colour | Grey |
| Warranty | 3 Years |
FAQ’s for Advanced 1.5A 24V EN54-4 PSE & Battery Charger (Small - 7Ah battery) (MXP-549)
Product Specification for Advanced 1.5A 24V EN54-4 PSE & Battery Charger (Small - 7Ah battery) (MXP-549)
| Approvals | All power supply units are approved with the requirements of BS EN54-4 1998, EN55022 class B emissions limits & EN60950: 2000 safety standards. |
| Input Supply | 220-240V AC, 50/60Hz, fuse T3.15H250 |
| Output Voltage | Max 28.5V DC, Min 18.5V DC at minimum battery voltage of 19V with mains disconnected |
| Charger voltage | 27.4V DC nominal at 20°C temperature compensated over the range -5°C to +45°C |
| Output Current | 1.0A continuous load, 0.5A battery charge |
| Dimensions Boxed H x W x D mm |
263 x 246 x 85 |
| Environment | Indoor, dry |
| Fault Output | Volt-free change-over contacts rated 1A @ 30V dc |
| On Board Indication | Mains Fail, Charger Fail, Battery Open Circuit, Battery Low & Heartbeat |
