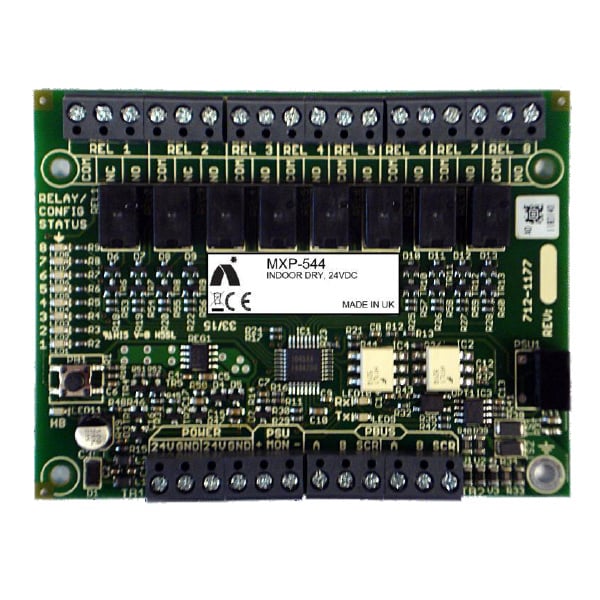

Advanced MXP-544 MxPro 5 P-BUS 8-Way Relay Card
SKU
MXP-544
£299.34
£249.45
Advanced MXP-544 MxPro 5 P-BUS 8-Way Relay Card
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Advanced MXP-544 MxPro 5 P-BUS 8-Way Relay Card
The Advanced MXP-544 Peripheral 8-Way Relay Card is an internal module intended for use with the MxPro 5 range of fire alarm control panels.
Each card provides 8 configurable relay outputs (2 x FORM C, 6 x FORM A). Up to 16 cards may be connected to a panel, allowing for an extra 128 relay outputs (SELV).
The MXP-544 is configured using a positive action sequence involving the on-board push button and LED indicators. This allows the module to be safely configured/inspected while adding an extra reporting capability not previously available to peripheral modules. Cards are protocol independent.
Limitations
Cards must be mounted locally to their power supply.
Requires PC-NET-003 Configuration Tool Version 6.91 Onwards
Key Features of the MXP-544 |
|---|
|
> Powered from CIE on local PSU
> Provides 8 configurable relay outputs > Up to 16 cards can be connected to the peripheral bus = 128 relays |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MXP-544 |
Write Your Own Review
FAQ’s for Advanced MXP-544 MxPro 5 P-BUS 8-Way Relay Card
No questions yet. Be the first to ask the question!
Product Specification for Advanced MXP-544 MxPro 5 P-BUS 8-Way Relay Card
| Power supply | 24 VDC |
| Quiescent current | 30 mA (Vs = 24 V) |
| Max current (O/Ps on) | 80 mA (Vs = 24V, 8 Relays on) |
| Operating temperature | -5°C to 40°C |
| Relative humidity | 95% non-condensing (maximum) |
| Dimensions H x W x D mm | 15 x 105 x 80 mm |
| Weight | 80 g |
| PSU monitor input | V F |
| PSU monitor EOL | 10 K |
| PBus EOL | 150 R 150 Ω |
| Relay outputs | SELV, 2 x Form C, 6 x Form A |
| Contact rating | 1 A at 30 VDC (resistive load) |
| Contact Resistance | 100 mΩ |
| Contact endurance | 100,000 operations min (under rated load) |
