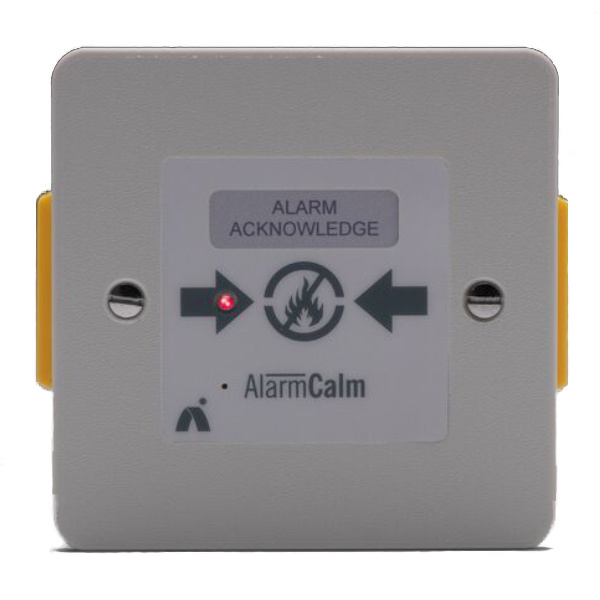

Advanced MXP-541A-002 MxPro 5 Alarm Calm Button with Buzzer (Apollo Protocol)
SKU
MXP-541A-002
£89.44 £74.53
Advanced MXP-541A-002 MxPro 5 Alarm Calm Button with Buzzer (Apollo Protocol)
Product Details for Advanced MXP-541A-002 MxPro 5 Alarm Calm Button with Buzzer (Apollo Protocol)
The Advanced MXP-541A-002 is a dedicated loop powered module compatible with an Apollo protocol detection loop.
AlarmCalm is Advanced's complete False Alarm Management (FAM) solution. AlarmCalm comprises Advanced's MxPro 5 or Axis EN fire systems, new AlarmCalm config software and the intelligent, loop powered, AlarmCalm buttons.
Among many features AlarmCalm allows the initial activation of a fire detector to be accepted and dealt with in a localised area of the protected premises. i.e. an AlarmCalm Button located inside dwelling/apartment can used be for silencing unwanted alarms when there is a local fire condition.
When used in conjunction with the AlarmCalm software it can be used to help verify if an activated condition from a device is considered to be a genuine alarm before the fire alarm condition is displayed on the panel.
The AlarmCalm button is a dedicated module connecting to an Apollo or Argus protocol detection loop on our MxPro 5 multiprotocol panel.
Watch The Video
Key Features of the MXP-541A-002 |
|---|
| > Apollo protocol > Push button input > LED output (for use as polling/activated function) > Mechanically compatible with a single gang UK electrical back box > Fully addressable device address, sits on loop (Apollo: 1-126, Axis EN: 1-240) > Fully programmable using AlarmCalm software, including verification and second-stage times > Unique device type recognised as AlarmCalm unit by MxPro 5 FACPs > Wiring terminations suitable for all Advanced recommended loop cables > Optional programmable audible buzzer output > Aimed at reducing unwanted alarms |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MXP-541A-002 |
Write Your Own Review
FAQ’s for Advanced MXP-541A-002 MxPro 5 Alarm Calm Button with Buzzer (Apollo Protocol)
No questions yet. Be the first to ask the question!
Product Specification for Advanced MXP-541A-002 MxPro 5 Alarm Calm Button with Buzzer (Apollo Protocol)
| Dimensions (HxWxD mm) | 86x86x23 |
| Connection Details | Loop In, Out & Screen connections |
| Control Buttons | Push-Button Input |
| User Indication | LED output: Blink on poll. Pulse during Stage-1 and ON during Stage-2 (Acknowledged) |
| Buzzer | 75 dB @ 1m |
| Current Consumption (Quiescent) | Apollo 1.0mA (AV: 0.6mA) |
| Current Consumption (Alarm) | Apollo 1.5mA (AV: 4.5mA) |
| Current Consumption (Buzzer) | Apollo 7.6mA (AV: 8.5mA) |
| Operating Voltage | 17-28V |
| Address | Apollo: 1-126 (AV: 1-240) |
