Advanced MXP-536 MxPro 5 P-BUS 8-Way Conventional Zone Card
SKU
MXP-536
£439.74
£366.45
Advanced MXP-536 MxPro 5 P-BUS 8-Way Conventional Zone Card
Available on Backorder
This item is not currently in stock, but it is available to backorder. Contact us for lead time.
Product Details for Advanced MXP-536 MxPro 5 P-BUS 8-Way Conventional Zone Card

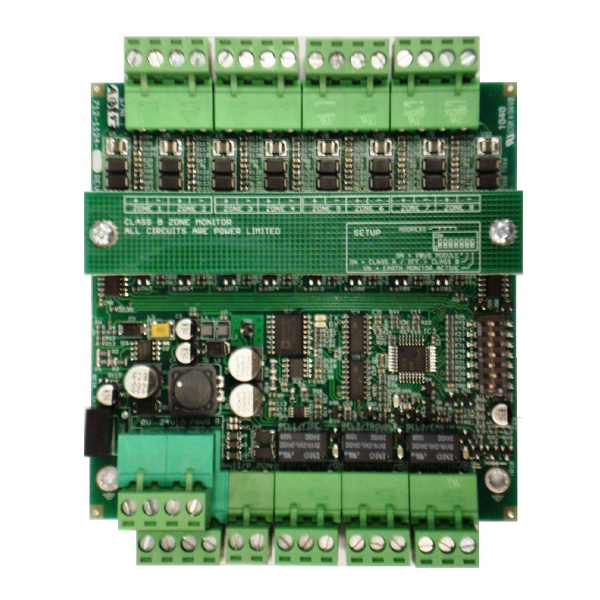

The Advanced MXP-536 Programmable 8-Zone Monitor Card is an optional peripheral unit that provides eight individually programmable zone monitor circuits compliant with BSEN54- 18: 1998 Clause 7.8.
Up to 16 cards can be connected to a multi-loop panel providing a maximum of up to 128 additional zone monitor circuits.
Each zone is fully programmable using the powerful dynamic cause-and-effect rules.
The unit is available as either a printed circuit card only.
Applications / Limitations
EN54-18 compliant zone monitor circuit.
Key Features of the MXP-536 |
|---|
|
> 8 zone circuits - each zone is monitored for open and short circuit
> Each zone is individually programmable with the available dynamic cause-and-effect rules > Up to 16 cards can be connected giving a total of 128 additional zone monitors > 1 relay output for reset > 128 zone monitor circuits per panel > Easily configured via PC-NET-003 > 3-year warranty as standard |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MXP-536 |
Write Your Own Review
FAQ’s for Advanced MXP-536 MxPro 5 P-BUS 8-Way Conventional Zone Card
No questions yet. Be the first to ask the question!
Product Specification for Advanced MXP-536 MxPro 5 P-BUS 8-Way Conventional Zone Card
| Applicable Standards | BS EN54-18 compatible |
| Operating Temperature | -5°C to 40°C |
| Relative Humidity | 95% non-condensing (maximum) |
| PCB Dimensions H x W x D mm | 100 x 105 18 |
| PCB Weight | 75 grams |
| Switch/Zone Inputs | 8 monitored inputs (6800R EOL, 470 active) |
| PCB Supply | 24VDC nominal (21-28VDC), 100mA (quiescent) 500mA (all zones short circuit) |
| Relay Output (x1) | 24VDC, 1A |
| Fault Input | Volt free, clean contact |
