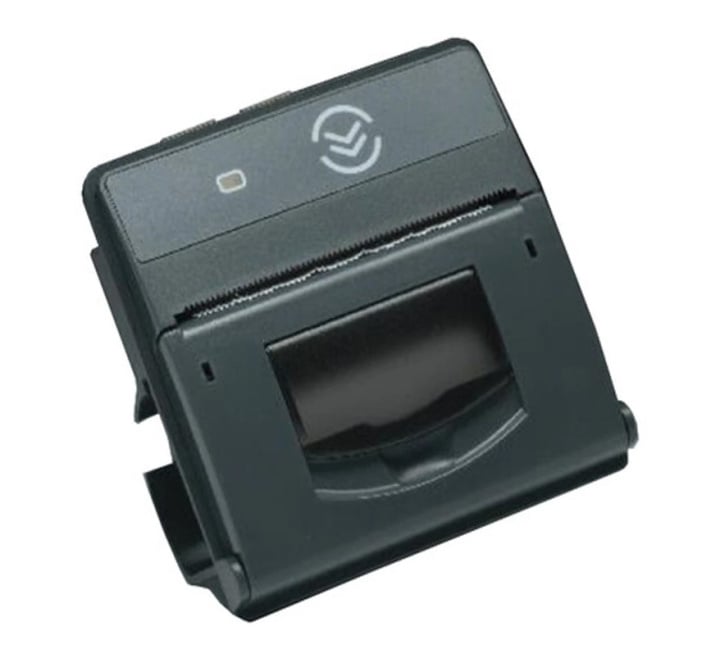

Advanced MxPro 5 Panel On-Board Printer Assembly (MXP-512)
Limited Stock
Product Details for Advanced MxPro 5 Panel On-Board Printer Assembly (MXP-512)
The Advanced MXP-512 On-Board thermal printer is an internal peripheral for use with the MxPro 5 range of control panels.
This additional unit provides automatic, or on demand copy listings of the event log or status information.
The unit being fast and silent during operation has its own in-built battery backup to enable continuous uninterrupted operation even during a mains fail situation.
Spare rolls of thermal paper can easily be replaced due to the mechanism’s easy access, front-loading compartment.
On-demand option for printing
- Inputs
- Outputs
- Disablements
- Event Log
- Network Faults
Can be used for printing the panel’s event log or configured by the user to automatically print any of the following event types: Fire, Fault, Alarm or Test.
Note: If an on-board printer is to be fitted to the panel with a zone indicator module, use the Mxp-013-050 or Mxp-013-100 modules. The Mxp-025 20 Zone LED card cannot be used.
Key Features of the MXP-512 |
|---|
|
> Fast instant response
> 3 year warranty as standard > Fast and silent operation > Thermal printer > Cost effective against ancillary hardware |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MXP-512 |
| Product Series | MxPro 5 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Warranty | 5 Years |
FAQ’s for Advanced MxPro 5 Panel On-Board Printer Assembly (MXP-512)
Product Specification for Advanced MxPro 5 Panel On-Board Printer Assembly (MXP-512)
| Printer Type | Thermal, graphical |
| Printer resolution | 384 dots per line |
| Panel loading in Quiescent State | 20mA |
| Panel loading, continuous printing | 25mA |
| Maximum working temperature | 50°C |
