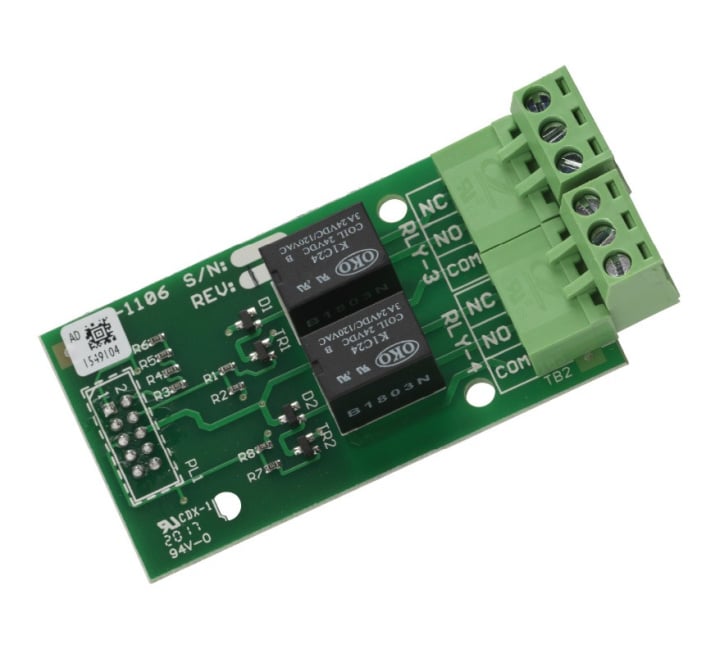

Advanced MxPro 5 2-Way Programmable Relay Card (MXP-507)
Limited Stock
Product Details for Advanced MxPro 5 2-Way Programmable Relay Card (MXP-507)
The Advanced MXP-507 2-Way Programmable Relay Card is an internal peripheral for use with MxPro 5 series control panels.
This additional PCB provides a cost effective solution to providing 2 individually programmable 1 Amp rated, volt free, change over contacts.
The 2-Way Programmable Relay Card connects directly to the panel’s motherboard in which each output can be individually assigned to an output group to provide full support for dynamic zoning.
Applications
Ideal for any application where a number of programmable outputs are required at the panel, e.g. landlord/tenant interfaces.
The system can be easily configured to provide additional outputs for the more complex cause and effect configurations using standard products.
Limitations
Each output can be assigned to an individual output group and is fully programmable for any output function allowed within the Mx configuration programme. Only one 2 Way Relay O/P Card can be fitted to MxPro 5 Series Fire Panels providing a total of 4 programmable relays per panel.
Key Features of the MXP-507 |
|---|
|
> Each output individually programmable
> Optional fail-safe setup > Allow investigation delays > Can silence option > Instant response time > Cost effective against ancillary hardware > Each output 30V AC/DC, 1 Amp rating > 3-year warranty as standard |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MXP-507 |
| Product Series | MxPro 5 |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Warranty | 3 Years |
FAQ’s for Advanced MxPro 5 2-Way Programmable Relay Card (MXP-507)
Product Specification for Advanced MxPro 5 2-Way Programmable Relay Card (MXP-507)
| Power supply | 24V DC (taken directly from panel) |
| Supply current | 0mA (30mA in alarm state) |
| Temperature | 0°C to 49°C indoor dry |
| Humidity | 10-95% Humidity (non-condensing) |
| Dimensions H x W x D mm | 80 x 40 x 18 |
| Outputs | 2 x programmable 30V AC/DC 1A resistive |
