Advanced MXP-034-BXP Peripheral Bus 4-Way Sounder Card with 4A PSU (Boxed)
Discontinued
Alternative Products
Product Details for Advanced MXP-034-BXP Peripheral Bus 4-Way Sounder Card with 4A PSU (Boxed)

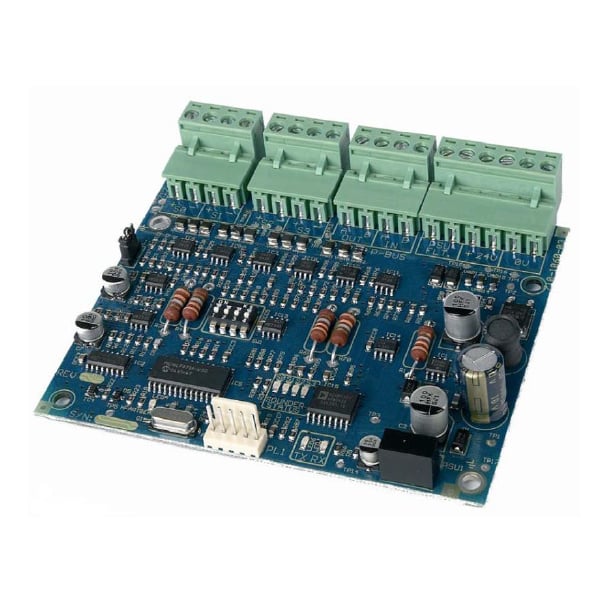

The Advanced MXP-034-BXP Programmable 4-Way Sounder Card is an optional peripheral unit with a 4A Power Supply Unit that provides four individually programmable, and monitored, sounder output circuits compliant with BSEN54-2: 1998 Clause 7.8.
Up to 16 cards can be connected to a multi-loop panel providing a maximum of 64 additional local sounder outputs. Each output is fully programmable using the powerful dynamic cause-and-effect rules, and all outputs are synchronised.
The unit is available as either a printed circuit card only or as a boxed version with integral 4A power supply
Applications / Limitations
EN54-2 compliant sounder outputs. Can be used with MxPro 4 2, 4 & 8 loop control panels programmed with version 020-02 software, or later, and fitted with base card hardware revision levels 10 (712-1022 MxPro 5 4 loop) and 09 (712-1022-002 MxPro 5 2 loop ) or later.
Requires installation of the Peripheral Bus Interface Adaptor card in the panel when using the MxPro 4 series.
Key Features of the MXP-034-BXP |
|---|
|
> Each output is 1A rated, and monitored for open and short circuits.
> Each output is individually programmable using the Dynamix cause-and-effects rules. > All outputs can be synchronised in pulsing modes. > Up to 16 cards can be connected giving a total of 64 additional outputs. > Each output may be individually programmed > Easily configured via PC-NET-003 > 3 year warranty as standard |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MXP-034-BXP |
FAQ’s for Advanced MXP-034-BXP Peripheral Bus 4-Way Sounder Card with 4A PSU (Boxed)
Product Specification for Advanced MXP-034-BXP Peripheral Bus 4-Way Sounder Card with 4A PSU (Boxed)
| Applicable Standards | BS EN54-2; 1998, BS EN54-4: 1998 |
| Operating Temperature | -5°C to 40°C |
| Relative Humidity | 95% non-condensing (maximum) |
| PCB Dimensions H x W x D mm | PCB 110 x 86 x 18 |
| PCB Weight | 75 grams |
| Enclosure | Steel, IP30, RAL9002 |
| Enclosure Dimensions H x W x D mm | 320 x 345 x 88 |
| Weight | 5 kg (excluding batteries) |
| Knockouts 20mm | 7 x top, 2 x bottom |
| AC Supply | 230V AC, 50Hz (+10%, -15%) FUSE T3. 15H250 |
| Standby Battery | 2 x 12V, 7AH Sealed lead-acid type (Yuasa recommended) |
| LED Indications (PCB) | Sounder circuit on, communications TX & RX and heartbeat |
| LED Indications (Box) | Power and general PSU fault - separate indications of specific PSU fault conditions are available on the PSU. |
