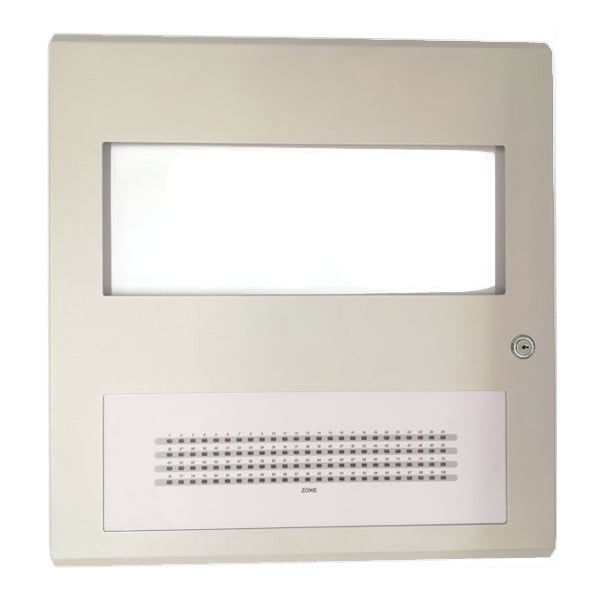

Advanced MXP-013-100 MxPro 4 100 Zone LED Card for Mx-4200 /4400 with Door & Label (Retro-Fit)

The Advanced MXP-013-100 is a 100 zone LED indicator card complete with panel door and label which can be retro-fitted to Advanced MxPro 4 MX-4200 / MX-4400 fire panels.

The Zonal LED indicator cards are a range of panel mounted peripheral modules that can be added to the MxPro 4 series of control panels. The display cards are available in numerous configurations and provide individual indication of the zone(s) in fire.

The units fully support dynamic zoning on networked or larger stand alone systems and can be used to provide individual zonal LED indication at one location.

20 zone units are available which are fitted to the front display plate on the MxPro 4 series control panel. The Mxp-013-100F incorporates 100 LED indicators and is compatible with all MxPro 4 series multiloop panels.

The cards are capable of simultaneously displaying all zones in a fire condition and incorporate a unique power saving feature to minimise the power drawn from the control panel in the event of a major fire.

Several other options are also available within the MxPro 4 range for applications where indication of fire signals from zones in addition to the panels graphical display is required. These options include Advanced Mimic Units, graphical systems and printers.
