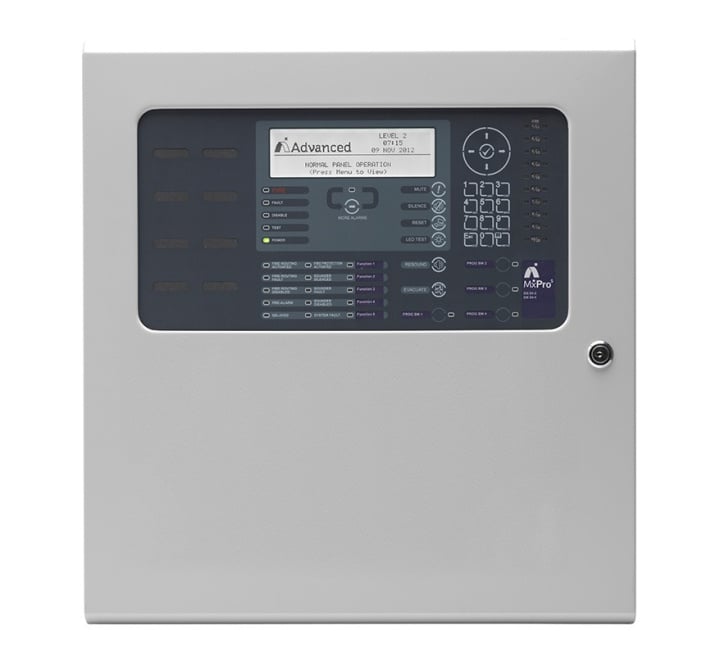

Advanced MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card (Nittan Protocol) (MX-5401N)
Product Details for Advanced MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card (Nittan Protocol) (MX-5401N)
The Advanced MxPro 5 series is fully expandable from 1 to 4 loops and supplied with 4 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.
The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation.
Powerful cause-and-effect programming and enhanced trace diagnostics makes the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the on-board alphanumeric keypad, or PC-NeT configuration software.
PC Software
An extensive suite of user-friendly Windows based PC software programs has been developed to enhance your experience when using MxPro 5 series fire panels. The suite incorporates a number of different programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.
Network
Simply adding a network card allows the panel to communicate with any other MxPro 5/MxPro 4 fire panel, remote terminal, or network peripheral, such as, ipGateway™ or BMS/graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault-tolerant loop or radial format.
Key Features of the MX-5401N |
|---|
|
> Nittan Evolution Protocol
> 1-4 loop addressable fire control panel c/w 1 loop card in large enclosure > Up to 254 devices per loop (protocol dependent) > Up to 200,000 devices per network > Networkable up to 200 nodes > Built in voltage and current meters > On board or optional remote battery temperature sensor > Advanced’s simple select and click programming and configuration > Quick start and protect - A working system after an Auto learn is performed > 20 built-in, fully programmable LEDs > 5000 event log entries > 201 programmable false alarm management areas per panel > Timed enablement of isolated zones, input and output devices > Backward compatible with MxPro 4 network > Approved to EN54 Parts 2, 4 and 13 > Certified by FM Approvals to EN54 Parts 2 and 4 > Autolearn and Loop detection > Up to 2000 fire detection zones > True peer-to-peer networking > Supports intelligent/programmable remote terminals, BMS interface, IP Gateway and I/O Drivers > Circuit monitoring from any panel or repeater > Direct USB and RS232 PC connections > Peripheral expansion built in > 4 programmable push buttons > Complete device history from each panel > Programmable screen logo > Advanced logic delivering huge configuration opportunities |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MX-5401N |
| Product Series | MxPro 5 |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Max No. of Loops Possible | 4 |
| Protocol Compatibility | Nittan Evolution |
| Colour | Grey |
| Warranty | 3 Years |
FAQ’s for Advanced MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card (Nittan Protocol) (MX-5401N)
Product Specification for Advanced MxPro 5 1-4 Loop Fire Panel c/w 1 Loop Card (Nittan Protocol) (MX-5401N)
| Base technology | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets |
| Display | White backlit 240 x 64 graphical LCD |
| LED Indicators | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 12 bi-colour (Fault & System) |
| Controls | Alpha numeric keypad permitting navigation, Reset, Mute, Silence, Resound, Evacuate, and 4 x Programmable push buttons |
| Protocol | Nittan Evolution |
| Number of Fire Zones | 2000 (200 per individual panel) |
| Number of Loops | Dedicated 1-4 loop control panel |
| Devices per Loop | Protocol dependent |
| Loop Current | 500mA per loop |
| On-Board Sounder Circuits | 4 x 1 Amp programmable |
| On-Board Relays | 2 x 1 Amp 30v AC/DC programmable(10mA, 5v min) - expandable to 4 using Mxp-507 |
| Auxiliary Supply | 1 x 24v 500mA |
| Programmable Input | 1 x monitored programmable input on-board |
| Programmable Key Switch Inputs | 8 x volt free inputs |
| Total Available Output Current | 5A maximum available for loop current + sounder outputs + auxiliary supply |
| Mains Supply | 200 - 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A Max |
| Battery Capacity | 24V 4Ah internal (min), 24V, 18Ah internal (max), deep enc. (D) - 24v, 45Ah internal (max) |
| Charger Current | 2A temperature compensated |
| Serial Port | 1 x on-board RS232 connection for PC, modem, IP, or portable printer |
| USB Interface | 1 x USB B type connection for PC communication |
| Programming | On-board keypad or PC running Windows tools |
| Event Log | 5000 event & diagnostic + 500 fire |
| Networking | Optional plug-in network card (Mxp-503 - standard, or Mxp-509 - fault-tolerant) |
| Printer (optional) | On-board (M, L, D enclosures only) |
| Enclosure / Colour | Steel IP30 / RAL7035 |
| Cable Entry (20mm knockouts) | 19 x top, 11 x rear, 2 x bottom, deep enc. (D) - 30 x top, 11 x rear, & 3 x bottom |
| Size H x W x D mm | 475 x 450 x 120, deep enc. (D) - 470 x 450 x 190 |
| Metalwork Options | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount |
| Approvals | EN 54-2:1998, EN 54-4:1998 & EN 54-13:2005 |
