Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

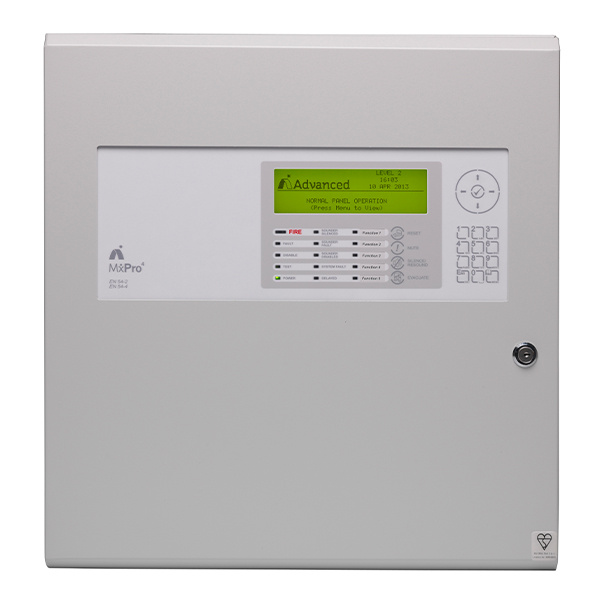

Advanced MX-4403 MxPro 4 1-4 Loop Fire Panel c/w 3 Loop Cards (Apollo/Hochiki Protocol)
SKU
MX-4403
Advanced MX-4403 MxPro 4 1-4 Loop Fire Panel c/w 3 Loop Cards (Apollo/Hochiki Protocol)
Discontinued
Alternative Products
Product Details for Advanced MX-4403 MxPro 4 1-4 Loop Fire Panel c/w 3 Loop Cards (Apollo/Hochiki Protocol)
The Advanced MX-4403 MxPro 4 fire panel comes with 3 loop driver cards fitted and is fully expandable from 3 to 4 loops complete with 4 onboard sounder circuits. The control panel consists of a simple to use LCD menu driven graphical interface, dual, flash based micro processor technology driven by a 4 Amp power supply and charger approved to EN54 parts 2 & 4.
Dedicated system navigation keys make this control panel user and installer friendly due to the uncomplicated, trouble free, commissioning and fault-finding.
Powerful cause and effect programming coupled with dynamic zoning makes the panel suitable for a wide range of site applications, from small to large complex multi-area systems. Fully on site programmable via onboard alphanumeric keypad or PC-NeT Configuration tools.
An extensive suite of PC based, software programs have been developed to supplement the MxPro 4 series fire panels.
Key Features of the MX-4403 |
|---|
|
> c/w 3 loop driver cards fitted
> Fully expandable from 1 to 4 loops via common plug in loop driver boards. > Full support of Apollo (Discovery & XP95) and Hochiki ESP protocols. > Advanced graphical LCD user interfaces with up to 1000 fire zones as standard, allowing full EN54 compliance without additional hardware or LED indication. > 5 Amp power supply and charger to EN54 part 4. > Dedicated RS232 serial port for direct PC or modem connection. > Dual, flash based, microprocessor technology with onboard Real Time Clock. Optional onboard or remote printer > Installer friendly Auto-learn and Loop Detection facility for troublefree, commissioning. Fully on-site programmable via on-board alphanumeric keypad or PC configuration tools > Flash memory and the advanced graphical display enables the panels to be configured to operate in virtually any language with any character set and allows the installer's logo and company details to be applied to the LCD display > Robust, removable equipment chassis with plug-in connectors for simple fixing and cable termination > When connected to the fault tolerant Ad-NeT network, the panel operates as a true peer-to-peer interface (with up to 1000 shared zones) with full cross panel reporting, control functionality |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MX-4403 |
FAQ’s for Advanced MX-4403 MxPro 4 1-4 Loop Fire Panel c/w 3 Loop Cards (Apollo/Hochiki Protocol)
No questions yet. Be the first to ask the question!
Product Specification for Advanced MX-4403 MxPro 4 1-4 Loop Fire Panel c/w 3 Loop Cards (Apollo/Hochiki Protocol)
| Base Technology | Dual-flash based processors with real time clock, trace diagnostics, pulse communications & programmable languages |
| Display | Backlit 240x64 graphical LCD |
| LED Indicators | 3 red (2 x Fire, 1 x Alarm), 1 green (Power) & 12 amber (Fault & System) |
| Controls | Alpha-numeric keypad, navigation keys & system keys for reset, mute, silence/resound & evacuate |
| Protocols | Apollo (S90,XP95, Xplorer and Discovery), Hochiki ESP |
| Number of Fire Zones | 1000 (200 per individual panel) |
| Number of Loops | 1-4. Expandable via individual plug-in loop driver |
| Devices per Loop | As per detector manufacturer’s specifications |
| Loop Current | 500mA |
| On-Board Sounder Circuits | 4 x 1 Amp programmable |
| On-Board Relays | 2 x 1 Amp 30v AC/DC programmable |
| Auxiliary Supply | 1 x 24v 500mA |
| Open collector / logic outputs | 8 x programmable |
| Programmable Switch Inputs | 8 volt free digital inputs |
| On Board Power Supply | 4 Amp high efficiency switched mode |
| Mains Supply | 230 V Ac (+10%, -15% tolerance) 50 /60 Hz 1.9 Amp |
| Battery Capacity | 24v 18 Ah internal. |
| Charger Current | 2.0 Amp DDP monitored, temperature compensated integral charger |
| Serial Ports | 1 RS232 onboard for PC, modem or external printer |
| Programming | Via on-board keypad or PC running Windows Tools |
| Event Log | 1000 fire & event + diagnostic |
| Networking | Optional plug-in network card |
| Printer (optional) | Optional external serial printer (no longer available) |
| Enclosure / Colour | Steel IP30 / RAL7035 |
| Cable Entry (20mm knockouts) | 20mm knock-outs. 18 x top, 9 x top rear and 2 x bottom |
| Size H x W x D mm | Actual (without door) 475 x 450 x 115 / 10Kg (depth with door is 125) |
| Metalwork Options | flushing bezel, ancillary enclosure & battery box |
| Approvals | BS EN54-2:1998, BS EN 54-4:1998 |
