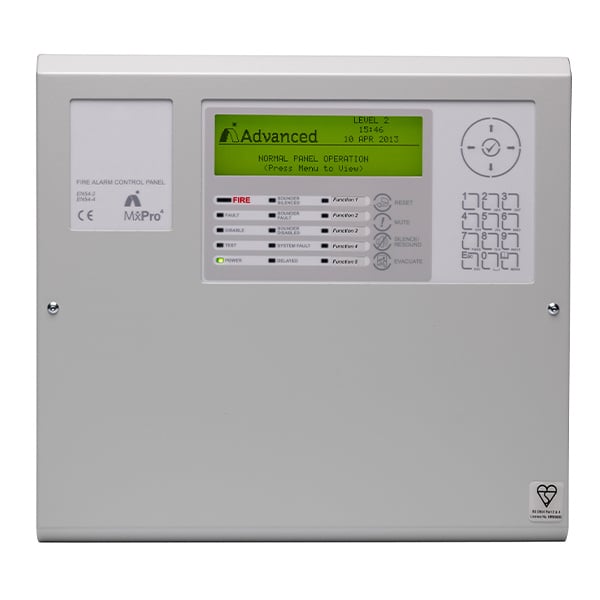

Advanced MX-4100 MxPro 4 1 Loop Fire Panel (Apollo/Hochiki Protocol)
Discontinued
Alternative Products
Product Details for Advanced MX-4100 MxPro 4 1 Loop Fire Panel (Apollo/Hochiki Protocol)
The Advanced MxPro 4 MX-4100 Single Loop Fire Panel comes fitted complete with an internal loop driver card (Apollo/Hochiki only) and 2 onboard sounder circuits. The control panel consists of a simple to use LCD menu driven graphical interface, dual, flash-based microprocessor technology driven by an onboard 24V DC, 2 Amp high efficiency switched mode power supply and charger approved to EN54 parts 2 & 4.
Dedicated system navigation keys make this control panel user-friendly as well as installer friendly due to the uncomplicated, trouble-free, commissioning and fault finding.
Powerful cause and effect programming coupled with dynamic zoning makes the panel suitable for a wide range of site applications, from small to large complex multi-area systems. Fully on-site programmable via on board alphanumeric keypad or PC-NeT configuration tools.
An extensive suite of PC based, software programs have been developed to supplement the Advanced MxPro 4 series fire panels.
Please Note: The MX-4100 has a fitted loop driver card for Apollo / Hochiki protocol so no further loop driver cards are required for this panel.
Key Features of the MX-4100 |
|---|
|
> Includes loop driver card (Apollo/Hochiki protocol) fitted as standard
> Full support of Apollo (Discovery & XP95) and Hochiki ESP protocols. > Advanced graphical LCD user interface with up to 250 fire zones as standard, allowing full EN54 compliance without additional hardware or LED indication. > Dedicated RS232 serial port for direct PC or modem connection. > Installer friendly auto-learn and loop detection facility for uncomplicated, trouble-free, commissioning and fault finding. > Fully on-site programmable via onboard alphanumeric keypad or PC configuration tools. > Flash memory and the advanced graphical display enables the panels to be configured to operate in virtually any language with any character set and allows the installer's logo and company details to be applied to the LCD display. |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | MX-4100 |
FAQ’s for Advanced MX-4100 MxPro 4 1 Loop Fire Panel (Apollo/Hochiki Protocol)
Product Specification for Advanced MX-4100 MxPro 4 1 Loop Fire Panel (Apollo/Hochiki Protocol)
| Base Technology | Dual-flash based processors with real time clock, trace diagnostics, pulse communications & programmable languages |
| Display | Backlit 240x64 graphical LCD |
| LED Indicators | 3 red (2 x Fire, 1 x Alarm), 1 green (Power) & 12 amber (Fault & System) |
| Controls | Alpha-numeric keypad, navigation keys & system keys for reset, mute, silence/resound & evacuate |
| Protocols | Apollo (S90,XP95, Xplorer and Discovery), Hochiki ESP |
| Number of Fire Zones | 250 (100 per individual panel) |
| Number of Loops | 1 |
| Devices per Loop | As per detector manufacturer’s specifications |
| Loop Current | 500mA |
| On-Board Sounder Circuits | 2 x 1 Amp programmable |
| On-Board Relays | 2 x 1 Amp 30v AC/DC programmable |
| Auxiliary Supply | 1 x 24v 500mA |
| Open collector / logic outputs | 2 x programmable |
| Programmable Switch Inputs | 8 volt free digital inputs |
| Total Available Output Current | 2 Amps maximum available for loop current + sounder outputs + auxiliary supply |
| Mains Supply | 230 V 50 Hz AC (+10%, -15% tolerance) 0.4 Amp |
| Battery Capacity | 24v 7 Ah internal. 24v 12 Ah external |
| Charger Current | 0.4 Amp DDP monitored, temperature compensated integral charger |
| Serial Port | 1 RS232 Onboard for PC, modem or external printer |
| USB Interface | 2 x USB B type connection for PC communication |
| Programming | Via on-board keypad or PC running Windows Tools |
| Event Log | 1000 fire & event + diagnostic |
| Networking | Optional plug-in network card |
| Printer (optional) | Optional external serial printer (no longer available) |
| Enclosure / Colour | Steel IP30 / RAL7035 |
| Cable Entry (20mm knockouts) | 20mm knock-outs. 7 x top, 7 x top rear |
| Size H x W x D mm | 320 x 345 x 85 |
| Metalwork Options | Flushing bezel, battery box |
| Approvals | BS EN54-2:1998, BS EN 54-4:1998 |
