Advanced Lux Intelligent 1-4 Loop Control Panel c/w 1 Loop Card (LX-9401)
Product Details for Advanced Lux Intelligent 1-4 Loop Control Panel c/w 1 Loop Card (LX-9401)

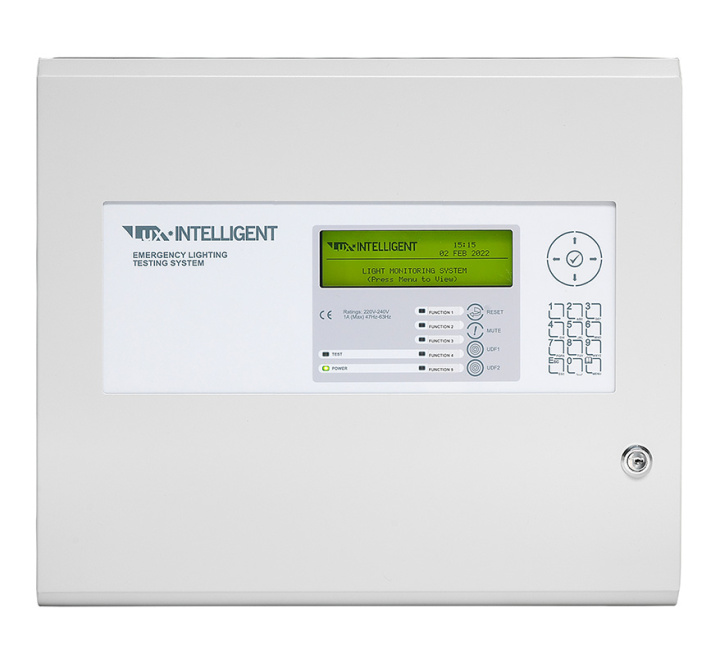

The Advanced LX-9401 is a 1-4 loop addressable emergency lighting control panel with 1 loop card supplied. The panel can be expanded up to 4 loops using additional loop driver cards (sold separately).
The Lux Intelligent addressable emergency lighting control system is designed provide a simple yet powerful, reliable and cost effective maintenance solution for testing your emergency lights and maintaining results data for inspection and audit purposes.
The provision for emergency lighting is a requirement for non-domestic buildings and is embodied in British and European legislation. Employers, building owners and occupiers have a legal responsibility to test and maintain their emergency systems to the standards required by the Code of Practice for Emergency Lighting of Premises BS 5266-1 and also EN50172, Emergency Escape Lighting Systems.
It supports both maintained, non-maintained and slave luminaires in either self-contained, central battery or static inverter systems. It supports all of the Lux Intelligent range of fittings. On top of this, Lux Intelligent modules can be added to almost any luminaires to allow them to fully function on the Lux Intelligent system.
The control panel has a dynamic event log of 1000 events as well as a separate log for recording of test results. Records of all automatic (and manual) tests are generated and can be downloaded by connecting to a computer and using the appropriate Lux Intelligent Logger tool. The data is then transferred to a database on a PC for subsequent analysis listing and printing. Once the data is there, there is also the opportunity of transferring this information up to the Lux Intelligent cloud using the Lux Intelligent sync tool. Through the Lux Intelligent app it becomes very easy to share and use this information.
Loop Expansion
Please Note: We stock and supply the panel fitted with 1 loop driver card (LX-9401), for additional loop panels (e.g. LX-9402, LX-9403 and LX-9404) the LX-9401 can be expanded up to a maximum of 4 loops using additional loop driver cards LXP-901 (available separately).
Key Features of the LX-9401 |
|---|
|
> Expandable up to 4 loops using additional LXP-901 loop driver cards
> Each panel can support 996 luminaires (Up to 249 luminaires per loop) > Advanced graphical LCD user interface > Loop powered communications > Easily installed often on existing wiring > Dedicated RS232 port supporting various modes of access > 5 Amp power supply and charger to EN54-4 > Fit and forget panel, using your 'My LuxIntelligent' account to manage your emergency lighting > 32 characters for zone text and 26 for each luminaire > Networks can contain up to 200 panels > Compatible with most third party luminaires, including most modern LED lights > Easy conversion of existing lights with our addressable modules > Can work with and monitor central battery and static inverter systems > Autolearn and loop detection for trouble-free installation and configuration > 400 individual tests can be spread across up to 50 test groups > Up to 200 zones available across each panel > 1000 event and diagnostic log > 24/7 monitoring, including cloud service and mobile app |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | LX-9401 |
FAQ’s for Advanced Lux Intelligent 1-4 Loop Control Panel c/w 1 Loop Card (LX-9401)
Product Specification for Advanced Lux Intelligent 1-4 Loop Control Panel c/w 1 Loop Card (LX-9401)
| Display | Backlit 260 by 64 graphical LCD |
| Controls | Alpha-numeric keypad, navigation keys, mute and reset |
| Enclosure/colour | Steel IP30/RAL 7035 |
| Dimensions (H*W*D) mm | 385 * 450 * 125 |
| Weight | 8.6kg |
| Temperature | -5°C to 40°C |
| Humidity | 95% max |
| Cable entries (20mm knockouts) | 18 top, 9 top rear, 2 bottom |
| Mains supply | 220-240V, +10%, -15%, 47-63 Hz AC, 1A (Max) |
| Battery capacity | 24V 4Ah (Min), 24V 12Ah (Max) Internal |
| Charging current | 2.4A, temperature compensated |
| Power supply | Separate 24Vdc, 5A universal input, switched mode |
| Number of loops | 1 to 4 |
| Devices per loop (total) | 249 (up to 50 EasySafe luminaires per loop) |
| Protocols | PuLsE |
| Auxiliary supply output | 24V dc , 500mA |
| Loop current | 500mA |
| Event log | 1000 event & diagnostic |
| Number of Zones | 200 maximum, across 4 loops (1000 when networked) |
| Number of test groups | 50 |
| Number of scheduled tests | 400 |
| On-board relays | 2 * 1A 30V AC/DC (fault) |
| Serial port | 1 * RS232 on board for PC/modem/printer |
| Integral modem (optional) | For connection to logging PC |
