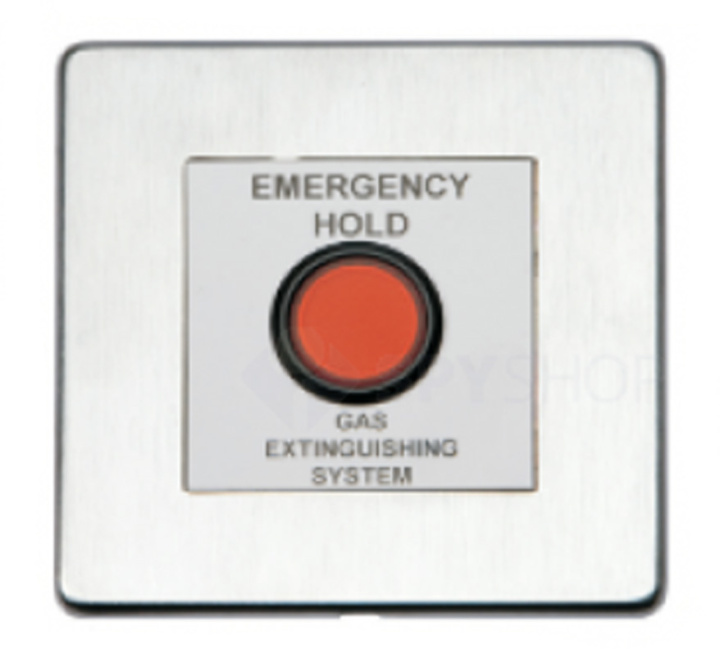

Advanced ExGo Hold Switch in Stainless Steel Trim Cover Plate (EXP-003-002)
SKU
EXP-003-002
£98.83
£82.36
Advanced ExGo Hold Switch in Stainless Steel Trim Cover Plate (EXP-003-002)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Advanced ExGo Hold Switch in Stainless Steel Trim Cover Plate (EXP-003-002)
The Hold and Abort Switch Modules complement the ExGo extinguishing and suppression control panels. The modules comply with the requirements of BS7273-1.
The switches are easy to wire and multiple units can easily be daisy-chained together on an input circuit.
A range of finishes are available - white, stainless steel and brass trims. Alternatively, the unit can be supplied in an IP65 rated enclosure.
The standard units can be surface mounted or semi-flush mounted onto standard 3½” electrical boxes. The IP65 unit is surface mounted.
All units are provided with an end of line resistor (Reol). Compatible with the ExGo gas extinguishing panel and remote status indicator panel input circuits.
Key Features of the EXP-003-002 |
|---|
|
> Hold Switch
> Stainless steel trim cover plate > Complements ExGo extinguishing and suppression Control Panels > BS7273-1 compliant > Easy to wire > Multiple units can be daisy-chained together on an input circuit > Surface or semi-flush mounted > End of line resistor provided > Compatible with ExGo gas extinguishing panel and remote status indicator panel input circuits |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | EXP-003-002 |
| Product Series | ExGo |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
Write Your Own Review
FAQ’s for Advanced ExGo Hold Switch in Stainless Steel Trim Cover Plate (EXP-003-002)
No questions yet. Be the first to ask the question!
Product Specification for Advanced ExGo Hold Switch in Stainless Steel Trim Cover Plate (EXP-003-002)
| Product Code: | EXP-003-002 |
| Product description: | Hold Switch, Stainless steel trim cover plate |
| Dimensions: Overall Back box |
W:87mm x H:87mm x D:47mm W:87mm x H:87mm x D:44mm |
| Minimum depth behind cover: |
35mm |
| Environmental Class |
Indoor 0o to 40oC, humidity 95% max |
| End-of-line Resistance: |
6800 Ohms |
| SW#1 Active Resistance: |
470 Ohms |
| Max. Operating Voltage: |
30V DC |
