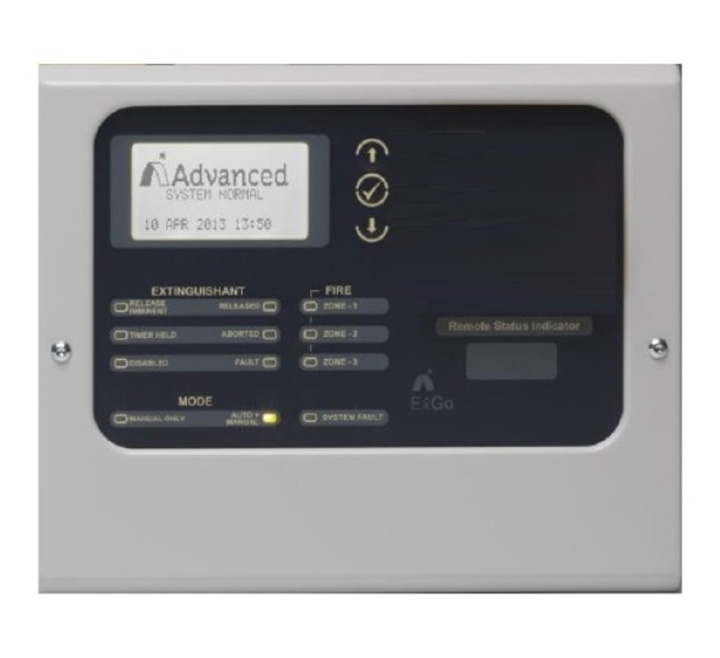

Advanced ExGo Remote Status Indicator c/w LCD & LED Indicators (EX-3020)
Product Details for Advanced ExGo Remote Status Indicator c/w LCD & LED Indicators (EX-3020)
The Advanced ExGo EX-3020 is a remote status indicator with LCD and LED indicators.
The ExGo Remote Status Indicators are available in two formats, a basic display only with optional key switches or a manual release version with optional key switch for automatic/manual mode.
The ExGo extinguishing system detects a fire in the same manner as a fire alarm system, but in addition to sounding alarms, it also controls the release of an extinguishing agent.
The extinguishing agent can take many forms from CO² through to specialist gases developed solely for extinguishing purposes. The agent is released into the atmosphere in the area where a fire has been detected, reducing the density of oxygen in the atmosphere around the fire, thus extinguishing the fire.
The ExGo extinguishing system is used primarily in areas of significant value/strategic importance to businesses e.g. computer suites and telecom switch-rooms; thus providing a cost effective solution to protect your work place.
Key Features of the EX-3020 |
|---|
|
> Small and compact
> RS485 network port > Optional manual release or display only > Surface mount or semi-flush option > Up to 7 remote status indicators per one ExGo 1 loop panel > 3-year warranty as standard > Key switch option for mode select or enable controls > Multiple languages > Programmable inputs and outputs |
| Brand | Advanced Electronics |
|---|---|
| Manufacturer Part No. | EX-3020 |
| Product Series | ExGo |
| Primary Power Source | 24V DC |
| System Type | Conventional |
| Warranty | 3 Years |
FAQ’s for Advanced ExGo Remote Status Indicator c/w LCD & LED Indicators (EX-3020)
Product Specification for Advanced ExGo Remote Status Indicator c/w LCD & LED Indicators (EX-3020)
| Product Code: | EX-3020 |
| Product description: | RSI c/w LCD + LED indicators |
| Dimensions: | W:235mm x H:190mm x D:45mm |
| Environmental class: |
Class A - indoor IP30 0oC to 40oC |
| Humidity: | 95% max |
| Cable entries: |
20mm knockouts - 4 x top & 4 x bottom rear |
| Power supply: |
24 DC nominal (18V - 28V) |
| Relay outputs (optional): |
2 x rated at 1A 30V AC/DC (max) 10mA 5V (min) programmable (requires EXP-007F) |
| Manual release: |
No |
| External inputs (monitored) |
2 x programmable |
| Communications: | RS485 to Ex-3000 series Control Panel |
| Display: | Graphic LCD 124 x 64 pixels |
| LED indicators: |
12 in total - Fire, Release, Timer, Disablement, Mode and Fault indications |
| Enclosure: | Steel IP30, (optional IP65 version available upon request) |
| Weight: | 1.5kg (excluding batteries) |
