Siemens FDCI222 Cerberus PRO 4-Way Input Module (A5Q00001984)
SKU
A5Q00001984
£64.63
£53.86

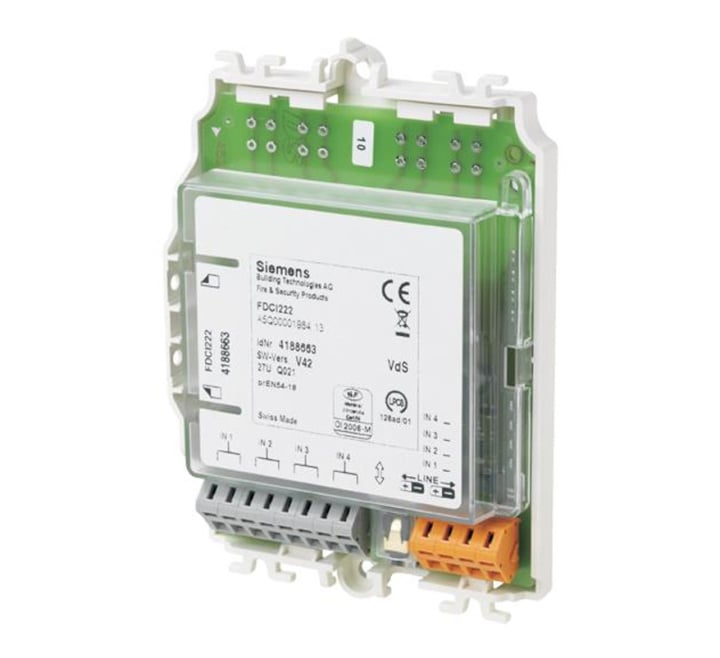

Siemens FDCI222 4-Way Input Module, Freely Programmable (A5Q00001984)
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDCI222 Cerberus PRO 4-Way Input Module (A5Q00001984)
The Siemens FDCI222 Cerberus PRO Input Module is for the connection of 4 independent circuits of potential-free, make-or-break contacts for the indication of technical states (e.g. door or ventilation control) or for alarm actuation (e.g. sprinkler alarm).
4 inputs for potential-free contacts. Input lines are monitored for open line and short-circuit (termination resistors). Inputs can be independently configured via the fire control panel for status or alarm messages.
Status indication by LED. Power supply via FDnet/C-NET.
Input module incl. 8 resistors and 2 mounting feet for TS35 U-rail.
Key Features of the A5Q00001984 |
|---|
|
> Input module for the automatically addressed detector line FDnet/C-NET
> 4 monitored contact inputs for confirming technical statuses or activating an Alarm > Transparent housing, ensuring that indicators are easy to see > Protected electronics > Integrated line separator > Chronological status monitoring > Easy mounting using snap fastener > Microprocessor-controlled signal processing > Different mounting options > For dry areas > Use additional housing FDCH221 for dusty and humid environments |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDCI222 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Colour | White |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDCI222 Cerberus PRO 4-Way Input Module (A5Q00001984)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDCI222 Cerberus PRO 4-Way Input Module (A5Q00001984)
| Product: | Siemens Input module (4 inputs) |
| Product code: | A5Q00001984 |
| Dimensions: |
W:130mm x H:90mm x D:20mm |
| Standard: | CEA GEI I-084 , EN 54-17 , EN 54-18 |
| Operating voltage: | DC12 - 33V |
| Operating temperature: | -25 to +60oC |
| Storage temperature: | -30 to +65oC |
| Cable capacity: | 0.2 - 1.5mm2 (2.5mm2) |
| System compatibility: | FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720 |
| Communication protocol: | FDnet/C-NET |
| Quiescent current: | Max. 0.25 - 0.35 mA |
| Relative humidity: | ≤95 % rel. |
| Colour: | Pure White (RAL9010) |
| Protection category: | IP30; IP65 with ext. housing |
