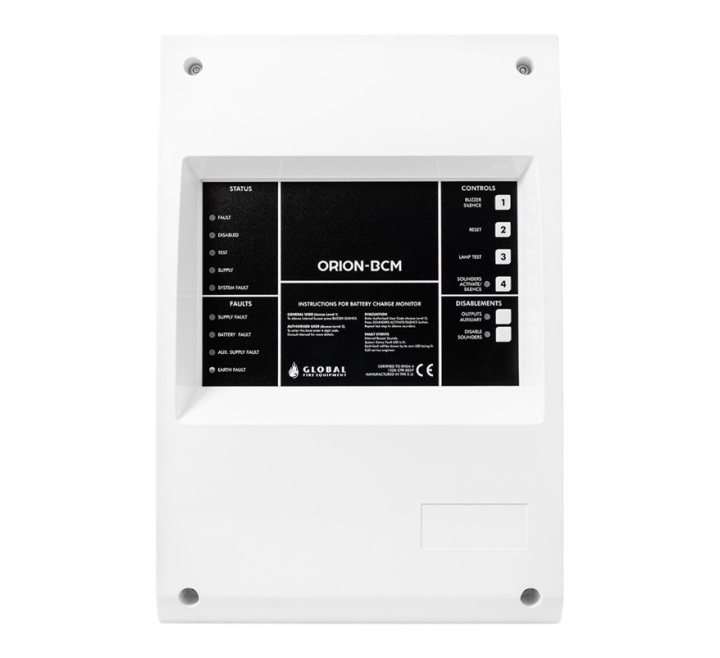

Global Fire ORION BCM 24V DC 1.7A EN54 PSU with Battery Charger & Integrated Sounder Circuit (BCM-ORION)
SKU
BCM-ORION
£142.56
£118.80
Global Fire ORION BCM 24V DC 1.7A EN54 PSU with Battery Charger and Integrated Sounder Circuit (BCM-ORION)
- Buy 10 for £140.36 £116.97 each and save 2%
- Buy 20 for £135.98 £113.32 each and save 5%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Global Fire ORION BCM 24V DC 1.7A EN54 PSU with Battery Charger & Integrated Sounder Circuit (BCM-ORION)
The Global Fire ORION-BCM is a self-contained EN54-4 certified Battery Charger Module (max 2 x 12v 7Ah) with a conventional sounder circuit and internal Alarm and Fault relays.
An internal monitoring system continuously checks all circuits, ensuring fault detection and notification, listed below:
● Sounder circuit integrity fault
● Battery charger fault (voltage level and charging behaviour)
● Mains fault (voltage level) and earth fault
● Output supply voltage level
● General system fault (by the means of an independent watchdog system)
Key Features of the BCM-ORION |
|---|
|
> Two inputs for fire relay and sounders direct activation
> One supervised conventional sounder circuit > Dedicated battery charger (Secondary Supply) for sounder circuit and auxiliary power (max 2 x 12v 7Ah batteries) > Two relays output for Fault (NC) and Fire (SPDT) signal - Unmonitored > Supervised 24V Supply Output with 900mA capability > EN54-4 Certified > EN54-13 Approval |
| Brand | Global Fire Equipment |
|---|---|
| Manufacturer Part No. | BCM-ORION |
| Primary Power Source | Mains Powered (230V) |
| System Type | Conventional |
| Warranty | 10 Years |
Write Your Own Review
FAQ’s for Global Fire ORION BCM 24V DC 1.7A EN54 PSU with Battery Charger & Integrated Sounder Circuit (BCM-ORION)
No questions yet. Be the first to ask the question!
Product Specification for Global Fire ORION BCM 24V DC 1.7A EN54 PSU with Battery Charger & Integrated Sounder Circuit (BCM-ORION)
| Product code: | BCM-ORION |
| Dimensions: | L:273mm x W:142mm x H:404mm |
| Mains supply voltage: |
90V - 253V AC @ 50Hz |
| Internal power supply: |
Min 21V DC - Max 30V DC (28.5V DC nominal) Max. Ripple 1 Vpp |
| Total output current: |
1.7A @ 230V AC |
| Supply & battery charger monitored: |
Yes |
| Batteries monitored: | Yes |
| Batteries max. internal resistance: |
1 Ohm |
| Max. Battery size: |
2x12V 12AH VRLA - Sealed Lead Acid Batteries, Min. Voltage 21V DC (Vb min) - Max Voltage 27.2V DC |
| Mains fuse: |
4A - 250V Slow Blow - 20mm |
| Battery fuse: |
1.6 Amp Resettable - Electronic fuse |
| Max. current draw from battery (mains failure) |
1.5 Amp Max. @ Max. operating temp. |
| DC power output: |
27.5V DC nominal - max. current drawn 900 mA |
| Fault relay: |
Active in Fault condition, 2A @ 30V DC resistive / 0.25A @ 230V AC resistive, NC |
| IP Rating: |
For indoor use. Surface Mounted: IP30, Semi-Recessed Mounted |
| Operating temperature: |
-10oC to +50oC |
| Max relative humidity: |
95% non condensing |
| Enclosure colour: |
White (RAL 9001) |
| Weight: | 1.7kg / 7 kg (inc. 2x7AH 12V batteries) |
