Discontinued Product
This product has been discontinued and is no longer available for purchase. Please contact us for further information and advice on suitable alternatives.

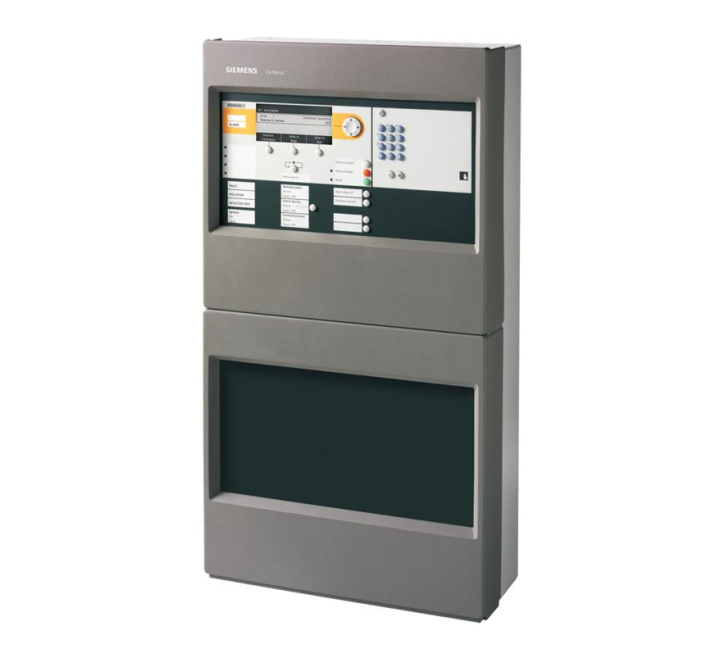

Siemens FC723-ZA Cerberus PRO 2 Loop Modular Fire Panel c/w 2 Card Cage Slots (No Zonal LEDs)
SKU
S54400-C143-A1
Siemens FC723-ZA 2 Loop Control Panel with 2 Card Cage Slots (Maximum of 756 Devices) No Zonal LED's (S54400-C143-A1)
Alternative Products
Product Details for Siemens FC723-ZA Cerberus PRO 2 Loop Modular Fire Panel c/w 2 Card Cage Slots (No Zonal LEDs)
The Siemens Cerberus PRO FC723-ZA is a modular 2 loop (expandable), prefabricated, microprocessor-controlled fire control panel with an integrated user-friendly operating unit for up to max. 756 addresses that can process signals from various detector systems like FD720 devices of the Cerberus PRO series and SynoLOOP devices.
The fire control panel can be used as stand-alone version or can be networked. Up to 64 stations (fire control panels and fire terminals) can be connected in one network.
Key Features of the S54400-C143-A1 |
|---|
| > Fire Control Panel, modular > Microprocessor-controlled > User-friendly operating unit for up to 756 addresses > 2 x 26Ah batteries > May be used as a stand-alone unit or networked > Integrated degraded mode function > Redundant network node, degraded mode operation according to EN 54 > Fast Ethernet interface for a heterogeneous network > Option of printer, key switches, LED displays > Slots for RS232, RS485 serial ports > Card cage for 2 extra cards > Line card C-NET (For migration) > SynoLOOP line card > Emergency power supply for emergency operating time of up to 72 hours > Detection and automatic reading in (auto configuration) of all Cerberus PRO devices, ready for operation immediately > Floor repeater devices, alarm devices and mimic displays in detector loop (C-NET) > Flexible programming of complex applications and controls |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FC723-ZA |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 2 |
| Number of Zones | 48 |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Grey |
| Warranty | 5 Years |
FAQ’s for Siemens FC723-ZA Cerberus PRO 2 Loop Modular Fire Panel c/w 2 Card Cage Slots (No Zonal LEDs)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FC723-ZA Cerberus PRO 2 Loop Modular Fire Panel c/w 2 Card Cage Slots (No Zonal LEDs)
| Product: | Siemens Fire Control Panel (modular) |
| Product code: | S54400-C143-A1 |
| Dimensions: Without cover cap: With cover cap: | W:430mm x H:796mm x D:160mm W:430mm x H:796mm x D:188mm |
| Standard: | EN54-2, EN54-4 |
| Detector compatibility: | Cerberus™ PRO FD720 (C-NET) |
| Operating voltage: | 21 - 28.6V |
| No. of addresses: | 756 |
| No. of detector lines: | Integrated lines:
|
| Battery capacity: | Max. 2 x 12V, 26 Ah |
| Programmable input/output: | 12 |
| Power consumption: | Alarm power: 5.136W, Quiet power: 3.264W |
| Relay outputs: | 1 x RT alarm 1 x RT fault |
| Supervised output: | 1 x RT alarm 1 x RT fault 2 x Horn |
| Power supply: | 150W |
| Operating current: | 5000 mA |
| Mains voltage: | AC 98-127 V / AC 196-264 V |
| Bypass time for emergency power supply: | 72h |
| Plug-in position: | 2 -> for serial interfaces RS232, RS485 , 2 -> for network modules , 1 -> for loop extension (C-NET) |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Operating temperature: | -8 to 42 °C |
| Storage temperature: | -20 to +60 °C |
| Protection category: | IP30 |
| Colour housing/cover: | Light Grey RAL 7035 / Grey RAL 050 00 00 |
| Weight: | 19.2 kg |
