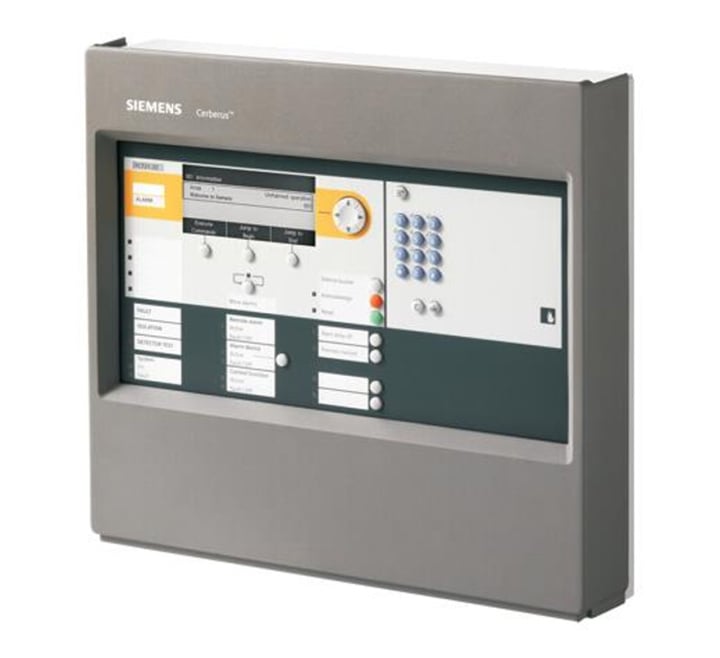

Siemens FC721-ZZ Cerberus PRO 1 Loop Fire Panel in Eco Housing (No Zonal LEDs) (S54400-C32-A2)
- Buy 10 for £952.92 £794.10 each and save 2%
Product Details for Siemens FC721-ZZ Cerberus PRO 1 Loop Fire Panel in Eco Housing (No Zonal LEDs) (S54400-C32-A2)
The Siemens Cerberus PRO FC721-ZZ is a compact fire control panel with an integrated operating unit that can process signals from Cerberus™ PRO devices of up to 126 addresses. The fire control panel may be used as a stand-alone unit only.
In addition, an Ethernet connection is available at each station. Via this fast Ethernet interface remote control service is possible. All detector lines are monitored for ground faults.
The Cerberus-Engineering-Tool permits the system to be adapted to specific customers' requirements. Up to 2000 events can be stored according to various criteria. Automatic summer/winter change. Detection and automatic read-in (auto-configuration) of all C-NET devices, providing immediate simple operation. Stored data can be uploaded via Cerberus-Remote access.
The FC721-ZZ is ideally suited for smaller applications, e.g. in workshops, hotels, etc.
The expansion and accessories must be ordered separately.
Key Features of the S54400-C32-A2 |
|---|
|
> 1 Loop compact Fire Control Panel
> Eco housing (space for up to 2 x 7Ah batteries) > No zonal LEDs > Processes signals from up to 126 addresses > May be used as a standalone unit > Ethernet connection available at each station > Detector lines monitored for ground faults > Auto configuration of all C-NET devices > Stored data can be uploaded via Cerberus-Remote access > Suited to smaller installations e.g. workshops, smaller hotels, schools, stores, residential homes > Expansions and accessories must be ordered separately |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FC721-ZZ |
| Product Series | Cerberus PRO |
| Primary Power Source | Mains Powered (230V) |
| System Type | Addressable |
| Number of Loops (Fitted) | 1 |
| Max No. of Loops Possible | 1 |
| Number of Zones | 24 |
| Protocol Compatibility | Siemens Cerberus |
| Colour | Grey |
| Warranty | 5 Years |
FAQ’s for Siemens FC721-ZZ Cerberus PRO 1 Loop Fire Panel in Eco Housing (No Zonal LEDs) (S54400-C32-A2)
Product Specification for Siemens FC721-ZZ Cerberus PRO 1 Loop Fire Panel in Eco Housing (No Zonal LEDs) (S54400-C32-A2)
| Product: | Siemens 1-loop Control Panel, 2 x 7Ah batteries, No zonal LEDs, Eco housing |
| Product code: | S54400-C32-A2 |
| Dimensions: |
W:430mm x H:398mm x D:80mm |
| Detector compatibility: | Cerberus™ PRO FD720 |
| Operating voltage: | 21 - 28.6V |
| No. of addresses: | 126 |
| No. of detector lines: | Loops: 1 Stub lines: 2 |
| Battery capacity: | Max. 2 x 12V, 7 Ah |
| Programmable input/output: | 4 |
| Power consumption: | Alarm power: 4.68W, Quiet power: 2.808W |
| Relay outputs: | 1 x RT alarm 1 x RT fault |
| Supervised output: | 1 x RT alarm 1 x RT fault 1 x Horn |
| Power supply: | 70W |
| Operating current: | 2500 mA |
| Mains voltage: | 97 - 127V AC / 196 - 253V AC |
| Bypass time for emergency power supply: | 72h |
| Plug-in position: | 1 -> for serial interface RS232 or RS485 |
| Relative humidity: | ≤95 % rel. (no condensation) |
| Operating temperature: | -8 - 42 °C |
| Storage temperature: | -20 - +60 °C |
| Protection category: | IP30 |
| Colour housing/cover: | Light Grey RAL 7035 / Grey RAL 050 00 00 |
| Weight: | 8.8 kg |
