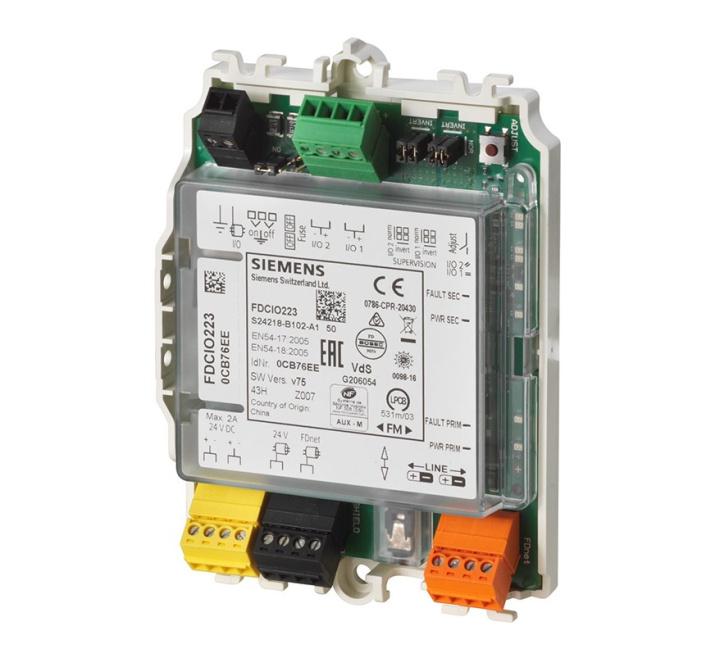

Siemens FDCIO223 Cerberus PRO Transponder for Monitored Sounder Circuit Control or Conventional Detector Line (Requires 24v DC) (S24218-B102-A1)
SKU
S24218-B102-A1
£184.14
£153.45
Siemens FDCIO223 Cerberus PRO Transponder for Monitored Sounder Circuit Control or Conventional Detector Line (S24218-B102-A1)
- Buy 10 for £180.50 £150.42 each and save 2%
Available to Order
This item is not currently in stock at our main warehouse, but it is available to backorder or may be sent directly from the manufacturer. Contact us for lead time.
Product Details for Siemens FDCIO223 Cerberus PRO Transponder for Monitored Sounder Circuit Control or Conventional Detector Line (Requires 24v DC) (S24218-B102-A1)
Siemens FDCIO223 Input/Output Module Transponder for connection of collective fire detectors (GMT/conventional line, GMT/conventional line with shunt Zener diode barrier (SB3) for explosion-hazard areas). For monitored controls of e.g. smoke dampers, alarm devices, door magnets and extinguishing activation devices (adhere to country-specific instructions). Monitored signal input for status and alarm messages or for acknowledging technical status.
The 2 inputs/outputs can be parameterized autonomously in each case as detector line collective, contact input, control output, control output and input as acknowledgement with selectable monitoring time frame. Status indication by LED.
Transponder incl. 2 Transzorb diode 20 V, 8 resistors and 2 mounting feet for TS35 U-rail.
Key Features of the S24218-B102-A1 |
|---|
|
> An input/output module (transponder) addressed for the FDnet and C-NET detector lines
> 2x monitored inputs/outputs, which can optionally be used as collective detector line/conventional detector line; contact input; control output; control output with confirmation > LED indicator for input/output statuses, fault, test, etc. > DC 24 V control output for equipment, max. 2x 1 A or 1x 1.5 A > Internal fuses for the outputs that can be bridged, 2x 0.7 AT > Two-wire installation for all cable types > Pluggable connection terminals > DC 24 V external power supply (detector lines electrically isolated) > Microprocessor-controlled signal processing > Communication via FDnet/C-NET (addressed individually) > Transparent housing, ensuring that LED indicators are easy to see > Protected electronics > Integrated line separator > Easy mounting using snap fastener on U-rails TS35 in fire control panels > Can be used in dry areas > Housing FDCH221 can be used in dusty and humid environments |
| Brand | Siemens |
|---|---|
| Manufacturer Part No. | FDCIO223 |
| Product Series | Cerberus PRO |
| Primary Power Source | 24V DC |
| System Type | Addressable |
| Protocol Compatibility | Siemens Cerberus |
| Warranty | 5 Years |
Write Your Own Review
FAQ’s for Siemens FDCIO223 Cerberus PRO Transponder for Monitored Sounder Circuit Control or Conventional Detector Line (Requires 24v DC) (S24218-B102-A1)
No questions yet. Be the first to ask the question!
Product Specification for Siemens FDCIO223 Cerberus PRO Transponder for Monitored Sounder Circuit Control or Conventional Detector Line (Requires 24v DC) (S24218-B102-A1)
| Product: | Siemens Input/Output Module, Transponder |
| Product code: | S24218-B102-A1 |
| Dimensions: |
W:132mm x H:90mm x D:24mm |
| Standard: | CEA GEI I-084 , EN 54-13 , EN 54-17 , EN 54-18 |
| Power supply: | External input voltage DC 18 - 32 V |
| Operating voltage: | FDnet/C-NET DC12 - 33V |
| EOL resistor: | 3.3 kΩ/680 Ω, 2.7 kΩ/560 Ω, 3.3 kΩ |
| Operating temperature: | -25 to +60oC |
| Storage temperature: | -30 to +65oC |
| Cable capacity: | 0.2 - 1.5mm2 (2.5mm2) |
| Control output: | DC 24 V ± 5 % / 2x 1 A or 1x 1.5 A |
| System compatibility: | FDnet -> FS20, AlgoRex, SIGMASYS C-NET -> FS720 |
| Communication protocol: | FDnet/C-NET |
| Detector line: | Collective GMT Siemens/Cerberus, Synova conventional/SynoLINE300, collective/SynoLINE600 or similar |
| Relative humidity: | ≤85 % rel. |
| Colour: | Pure White (RAL9010) |
| Protection category: | IP30; IP65 with ext. housing |
